Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China , zhejiang |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE SGS |
| Model Number: | ZH-GD8-200 |
| Minimum Order Quantity: | 1sets |
| Price: | USD+23000USD+per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 35working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 99+sets+per month |
| Voltage: | 380V 60Hz | Automatic Grade: | Automatic |
|---|---|---|---|
| Condition: | New | Packaging Type: | Pre-made Bag With Zipper.,flat Bag,stand Up |
| Function: | Filling , Sealing , Wrapping | Application: | Food , Nuts , Jerky Beef, Grain,bean |
| After-sales Service Provided: | Online Support,Video Technical Support,Engineers Available To Service Machinery Overseas | Packing Speed: | 25-50Bags/min |
| Warranty: | 1 Years | Product Name: | Automatic Packing Machine For Pre-made Bag |
| Model: | ZH-GD8-200 | ||
| High Light: | Automatic Premade Pouch Packing Machine,50Bags/min Premade Pouch Machinene,Zipper Bag Premade Pouch Machine |
||
|
SPECIFICATIONS FOR ZH-BL10 VERTICAL PACKING SYSTEM
|
|||
|
Model
|
ZH-BG10
|
||
|
Packing speed
|
30-70 Bags/Min
|
||
|
System Output
|
≥8.4 Ton/Day
|
||
|
Packaging Accuracy
|
±0.1-1.5g
|
||
|

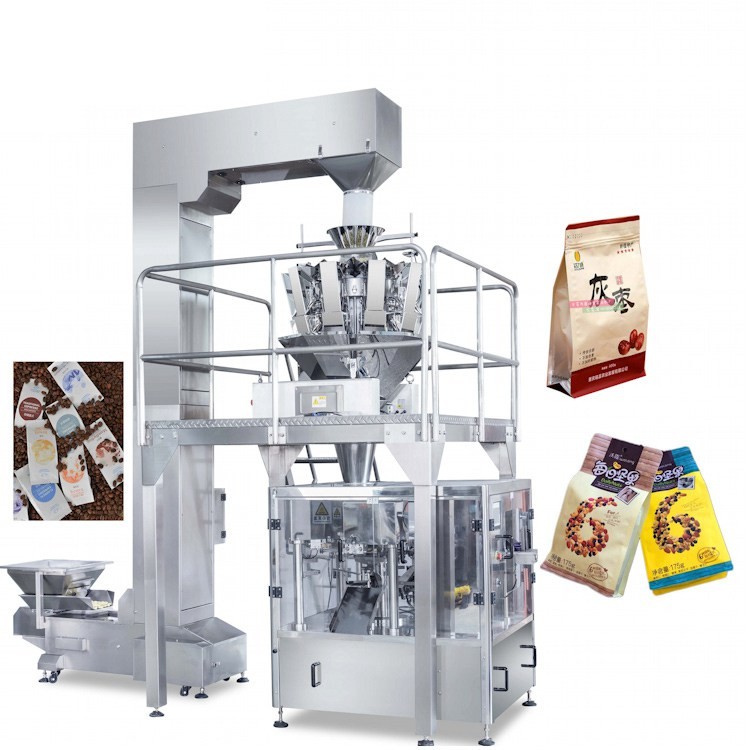

System Construction
|
|||
|
Z type hoister: Raise material to multihead weigher which controls the start and stop of the hoister.
|
|||
|
10 heads multi weigher: Used for quantitative weighing.
|
|||
|
Vertical packaging machine: Pack the material with high speed, and data printed, sealing-off and bag cut are completed automatically.
|
|||
|
Platform: Support the 10 heads multi weigher.
|
|||
|
Product conveyor: Conveyor the product to next step.
|
|||
1) Material conveying, weighing, filling, bag-making, date-printing, finished product outputting are all completed automatically.
2) High weighing precision and efficiency.
3) Packing efficiency will be high with vertical packing machine and easy to operate.
|
TECHNICAL SPECIFICATION
|
|
|
Model
|
ZH-GD8-200
|
|
Packing Speed
|
≤50 bag/min
|
|
Bag Size (mm)
|
W :70-150 L:75-300
W :100-200 L:100-350
W :200-300 L:200-450 |
|
Bag Type
|
Flat pouch, Stand up pouch, Stand up pouch with zippe
|
|
Air Consumption
|
0.6 m3/min 0.8Mpa
|
|
Packing Material
|
POPP/CPP, POPP/VMCPP,BOPP/PE,PET/AL/PE, NY/PE, PET/PET
|
|
Power Parameter
|
380V50/60Hz 4KW
|
|
Machine Dimension(mm)
|
1770(L) ×1700(W)×1800(H)
|
|
Gross Weight (Kg)
|
1200
|
Detailed After-Sales Service.
1. Training services:
We will train your engineer to install our weigher. You can send your engineer to our factory or we dispatch our engineer to your company. We will introduce your engineer how to install the weigher and how to fix problem.
2. Trouble shooting service:
Some times if you can not fix the problem in your country, we will send our engineer there if you need us to support. By the way, you need to afford the round trip flight ticket and accommodation fee.
3. Spare Parts replacement:
In guarantee period, if spare part broken, we will send you the parts free and we will pay the express fee. And please send us the spare parts back. when machine is out of guarantee period, we will provide you the spare parts in cost price.
4. The documents that will be supplied:
1) Invoice;
2) Packing List;
3) Bill of Lading
4) Other files that buyer wanted.
Our Factory
