Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China,zhejiang |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE SGS |
| Model Number: | ZH-A2 |
| Minimum Order Quantity: | 1SETS |
| Price: | USD+3800+Sets |
| Packaging Details: | wooden case |
| Delivery Time: | 10-20working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 99+sets+per month |
| Automatic Grade: | Automatic | Condition: | New |
|---|---|---|---|
| Driven Type: | Electric | Application: | Food, Commodity, Medical, Chemical, Machinery & Hardware |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support | Power: | 220V / 50/60HZ / 8A/ 800W |
| Name: | ZH-A2 Linear Weigher | Weighing Range: | 10-2000g |
| Feature: | High Precise Digital Weighing Sensor | ||
| High Light: | 8L Hopper 2 Head Linear Weigher,15L Hopper Linear Weigher Machine,Electric 2 Head Linear Weigher |
||

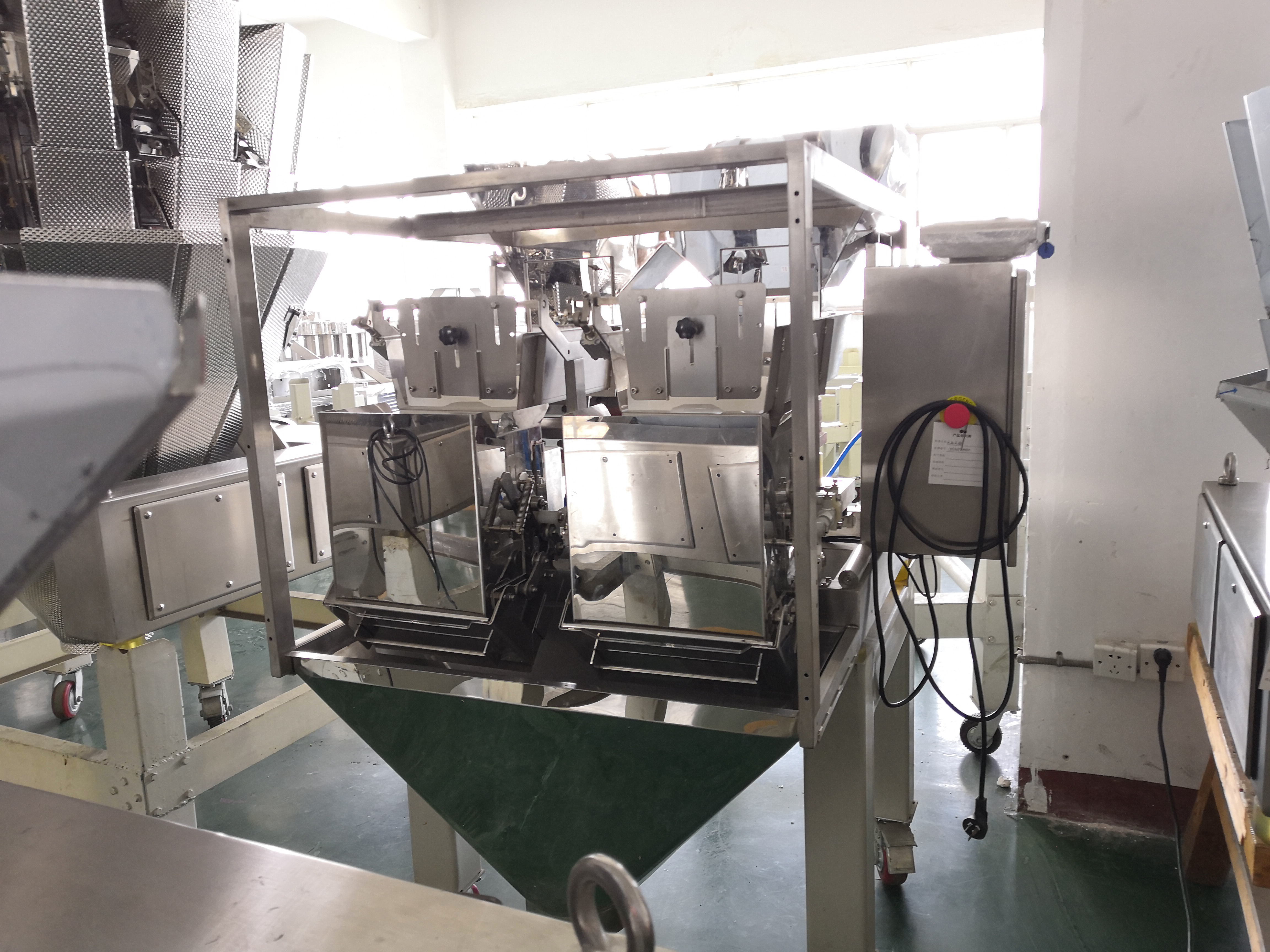

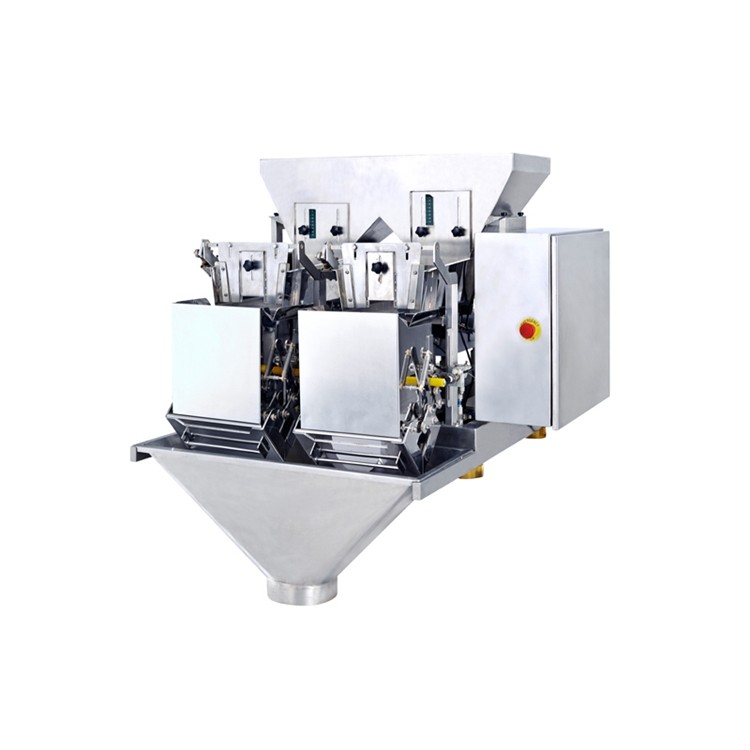

Factory Price 2 Head Linear Weigher With 8L 15L Hopper
1 . Parameters
| Model | ZH-A4 /ZH-A2 |
| Weighing Range | 10-2000g |
| Max Weigh Speed | 60 Bags/Min |
| Accuracy | 0.2-2g |
| Hopper Volume | 3000ml |
| Max Products | 4 |
| Interface | 5.4"HMI |
| Power | 220V / 50/60HZ / 8A/ 800W |
| Dimension(mm) | 1010(L)*960(W)*1207(H) |
2 . Application of ZH-A4 4 Head Linear weigher
ZH-A4 is developed for precise and high-speed quantitative weighing packaging system. It is suitable for weighing material of small grain with good uniformity, such as oatmeal, sugar, salt, seeds, rice, sesame, milk powder coffee, etc.linear weighers can be applied in many ways by both the food and non-food industry. Due to the low drop heights in the Atoma linear weighers, they are mostly used for fragile products.
3 . Main function
1 . High precise digital weighing sensor and AD module have been developed.
2 . Touch screen with human-based interface.
3 . The hoppers are easy to remove without tool .
4 . Chinese/English/Spanish multi language operation system can be selected basing on customer’s requests.
4 . The 4head linear weigher can work with different type packing machine,It's very easy to install and opeartion.
5 . Linear weigher Scale,There are two moldels with either 2 heads or 4 heads .

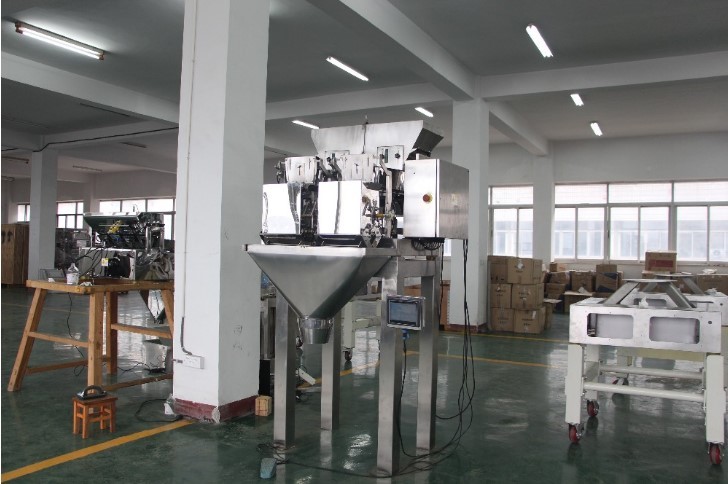

Our factory :
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support.
* Training how to install the machine, training how to use the machine.
* Sample testing support.
* Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to providing
customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3. Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4. The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted
