Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China,Zhejiang |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE SGS |
| Model Number: | ZH-A14 |
| Minimum Order Quantity: | 1Sets |
| Price: | USD10600/Set |
| Packaging Details: | Wooden case |
| Delivery Time: | 10-15working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 99sets per month |
| Type: | Automatic Weighing Scale | Voltage: | 220V 50/60Hz |
|---|---|---|---|
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Application: | Beverage, Chemical, Commodity, Food, Machinery & Hardware | After-sales Service Provided: | Online Support, Video Technical Support, Free Spare Parts, Field Installation |
| Dimension(l*w*h): | 1750(L)*1200(W)*1240(H) | Power: | 1KW |
| Model: | ZH-A14 | Target Range: | 10g-2kg |
| High Light: | Tomato 14 Head Weigher,2.5L Hopper 14 Head Weigher,Tomato 14 Head Multihead Weigher |
||

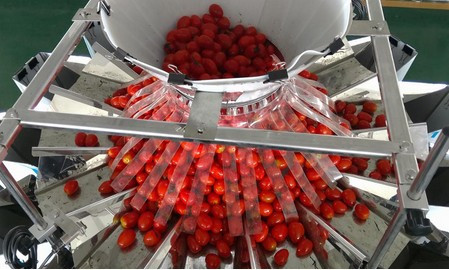

High Speed Cherry Tomato Packing Machine With 2.5LHopper 14 Head Multihead Weigher
CE Certificate Granule Rice Sugar Weighing Automatic Multihead Weigher With 1.6L Hopper
Product Description

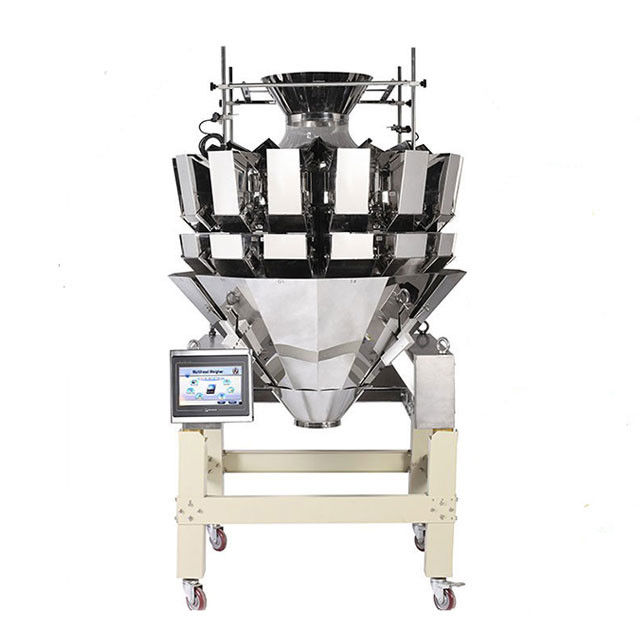

ZH-A14 Multihead Weigher
1 . Main function
1. Vibrator modifies the amplitude basing on different target to make material down more equably and get higher combination rate.
2. High precise digital weighing sensor and AD module have been developed.
3. Modify hopper open speed and open angle basing on the characteristics of measured material can prevent material blocking the hopper.
4. Multi-time drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper.
5. Material collecting process system with difference automatic identified and one drag two function can remove unqualified product and deal with material drop signals from two packaging machines.
6. Components which touch the material are all manufactured with stainless steel. Hermetic and waterproof design has been adopted for preventing particles entering and cleaning easily.
7. Different authority can be set for different operator, which is for easy management.
8. Multi-language operation system can be selected basing on customer’s requests.
2 . Application

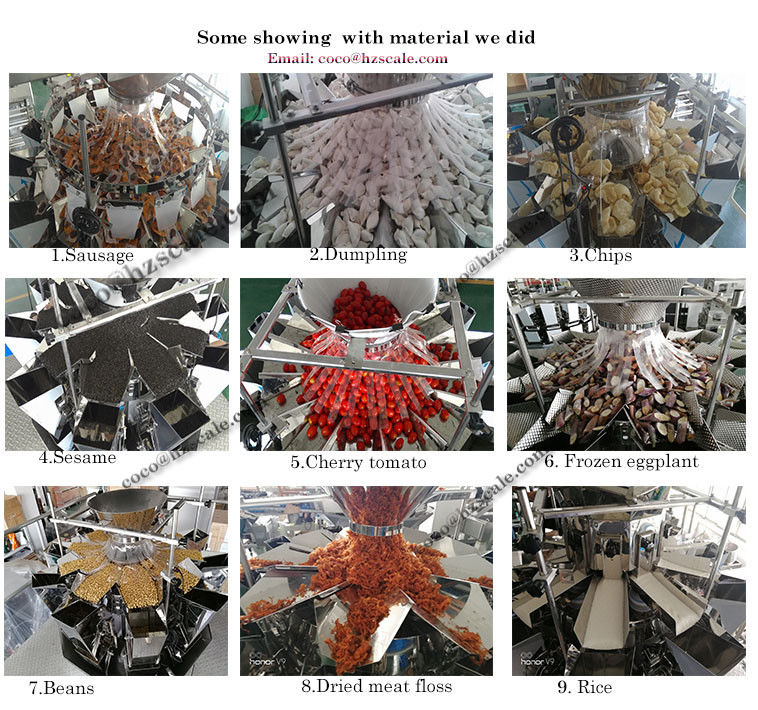

ZH-A14 is developed for precise and high-speed quantitative weighing packaging system. It is suitable for weighing material of grain, stick, slice, globose, irregular shape such as candy, fruits, nut, pet food, roasted seeds, puffed food, frozen food, small hardware.

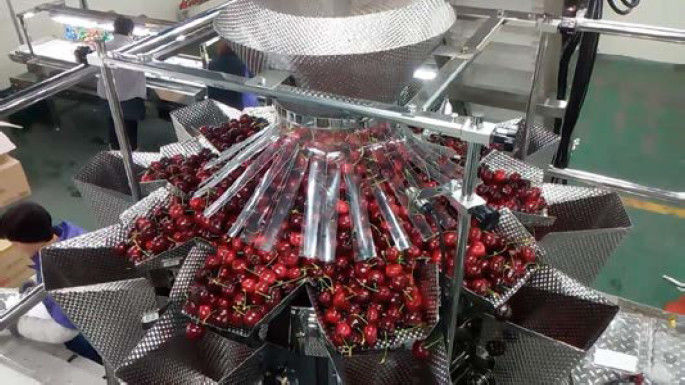

More picture of multihead weigher :
3 . Parameters
| Model | ZH-A10 | ZH-A14 | ZH-A20 |
| Weighing Range | 10-2000g | ||
| Max Weigh Speed | 65 Bags/Min | 120bags/min | 130bags/min |
| Accuracy | ±0.1-1.5g | ||

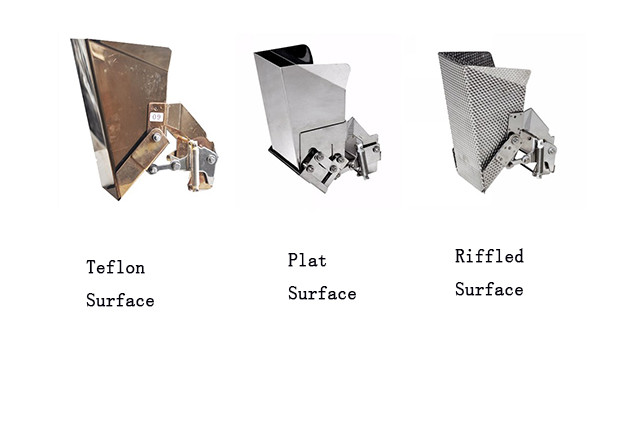

| Hopper Volume | 0.5L/1.6L/2.5L/5L | ||
| Driver Method | Stepper motor | ||
| Option |
Timing Hopper/ Double door Hopper/ Dimple Hopper/ Printer/ Overweight Identifier / Rotary Vibrator |
||
| Interface | 7'HMI or 10"HMI | ||
| Power Parameter | 220V/ 50/60HZ 1000W | 220V/50/60HZ 1500W | 220V/50/60HZ 2000W |
| Package Volume (mm) | 1650(L)×1120(W)×1150(H) | 1750(L)X1200(W)X1240(H) | 1650(L)X1650(W)X1500(H) |
| Gross Weight(Kg) | 400 | 490 | 880 |
Our service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to providing
customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3. Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4. The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
Why choose ZONPACK :
