Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | Hangzhou,Zhejiang,China |
|---|---|
| Brand Name: | Zonpack |
| Certification: | CE |
| Minimum Order Quantity: | 1sets |
| Price: | USD7500-8500/set |
| Packaging Details: | wooden cases |
| Delivery Time: | 35-50working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 99sets/month |
| Application: | Packing Food | Bag Type: | Pillow Bag,Gusset Bag |
|---|---|---|---|
| Advantage: | Easy To Operate | Packing Speed: | 25-55bags/min |
| Feature: | High Speed | Technical Feature: | Perfect Alarm System |
| High Light: | 55bags/min Gusset Bag Packing Machine,Gusset Bag Vertical Packing Machine,Pillow Bag Packing Machine 55bags/min |
||

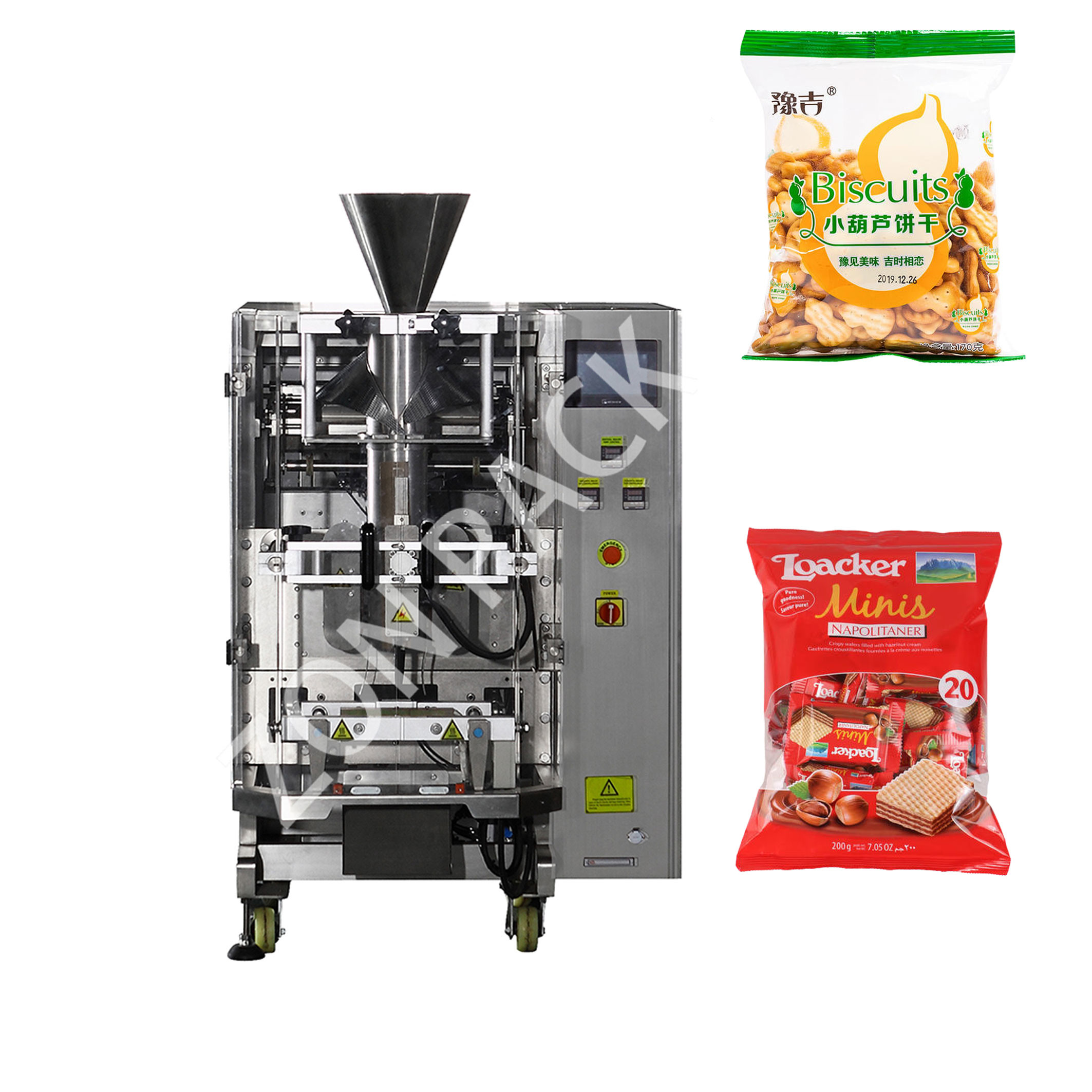

Automatic Cookies Chips Packing Pillow Bag Gusset Bag Vertical Packing Machine
Fully Automatic Nuts Cashew Nuts Packing Pillow Bag Gusset Bag Vertical Packing Machine
Multi-Function Potato Chips Puffed Food Snacks Packing Pillow Bag Vertical Packing Machine
Automatic CE Certification Candy Potato Chips Packing Pillow Bag Vertical Packing Machine
High Speed Potato Chips Chocolate Packing Pillow Bag Gusset Bag Vertical Packing Machine
CE automatic peanut cashew nut packing machine nuts packaging machine
Application of Machine
It is suitable for weighing and packing grain, stick, slice, globose, irregular shape products, such as candy, chocolate,
jelly,pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips ,raisins,
plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables ,fruits, sea food,
frozen food, small hardware, etc.
| Technical Specification | |
| Model | ZH-BL10 |
| Packing Speed | 25-60 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |

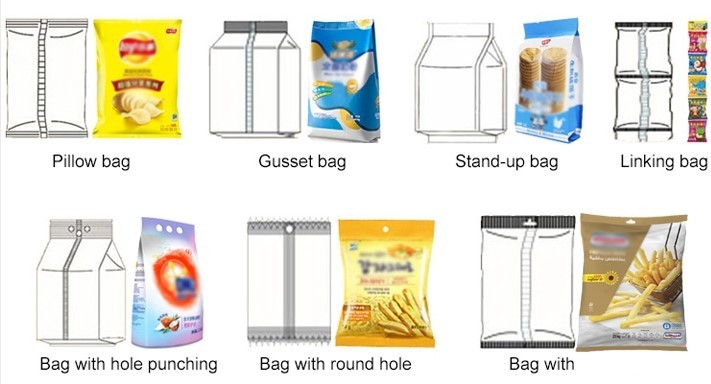

| Bag making mode | Pillow bag, Gusset bag , Punching bag,linked bag |
| Packing Material | laminated film ,PE film |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) |
VFFS 320: (W) 60-150 (L)50-200 VFFS720: (W) 120-350 (L)100-450 |
Technical Feature
1. Material conveying, weighing, filling, bag-making, date-printing, finished product outputting are all completed
automatically.
2. High weighing precision and efficiency.
3. Packing efficiency will be high with vertical packing machine and easy to operate.

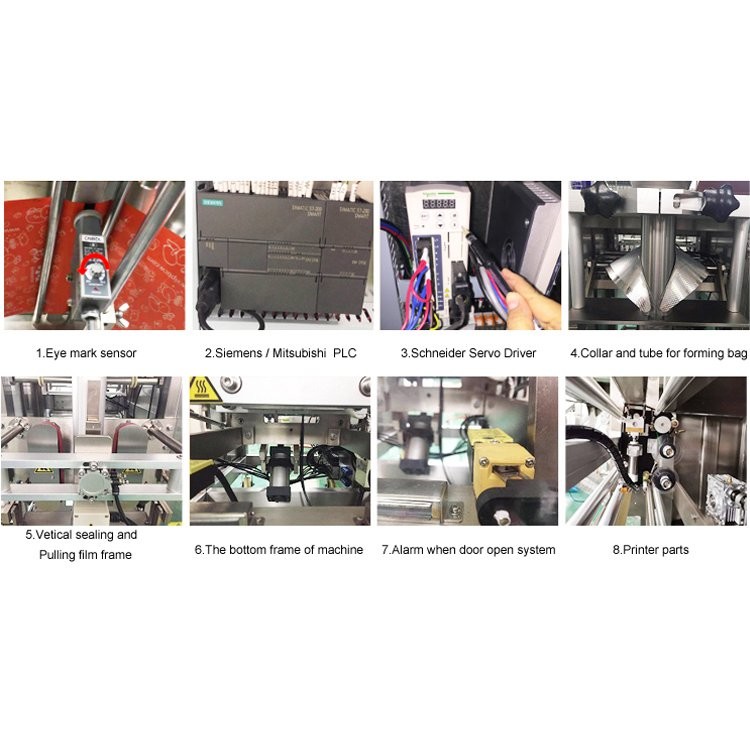

System Compostion
1. Infeed bucket conveyor:
Feed nuts to multihead weigher which controls the start and stop of the hoister.
2. 10 heads multi weigher:
Used for nuts weighing.
3. Working platform:
Support the 10 heads multi weigher.

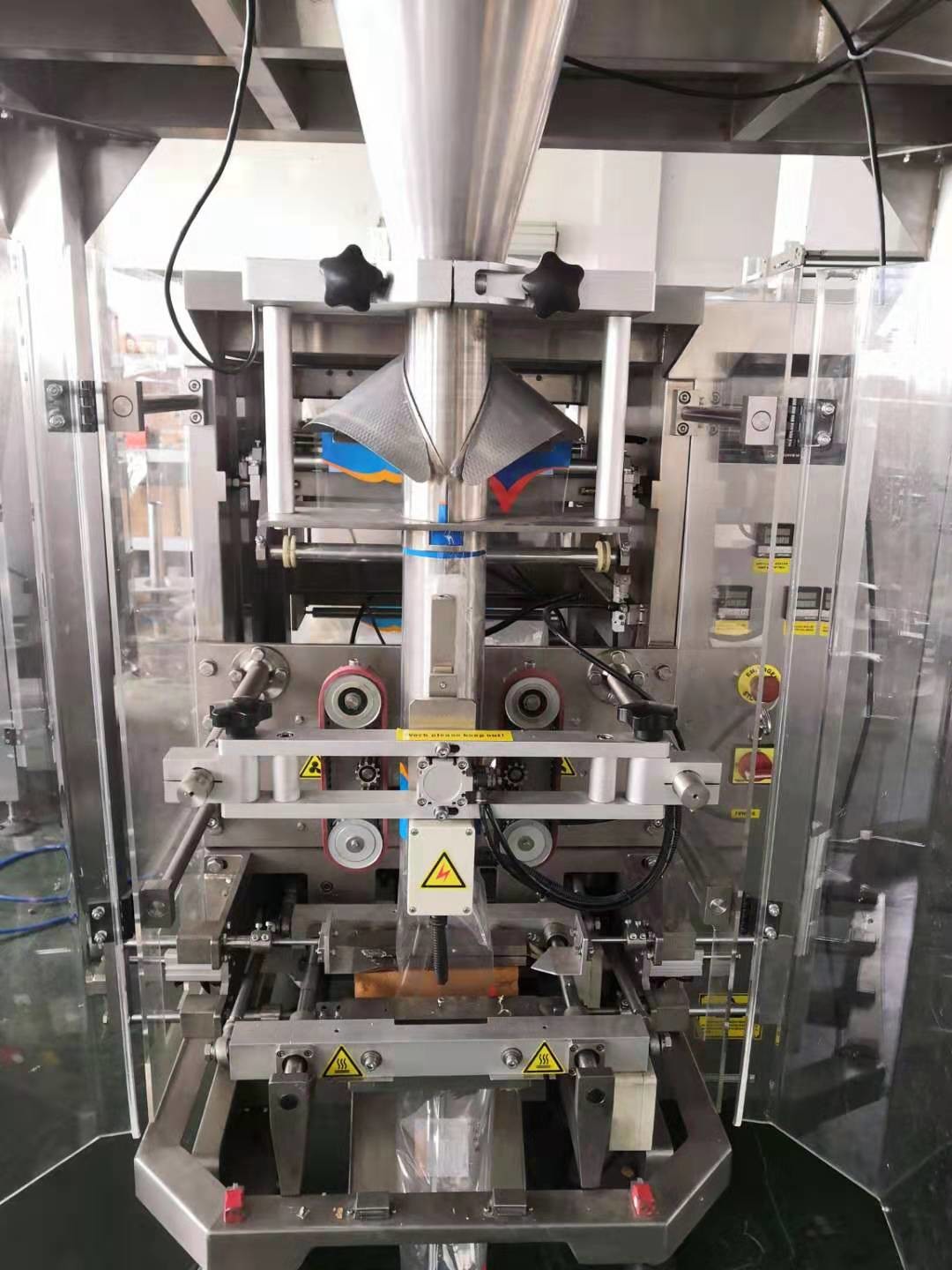

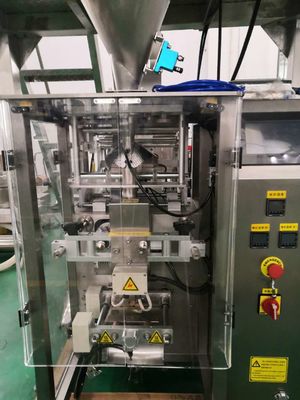

4. Vertical packing machine:
Pack nuts with high speed, and data printed, sealing-off and bag cut are completed automatically.
5. Take off conveyor:
Convey nuts finished bag to next step.
6. Rotary table:
For finished bag collecting.
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3. Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4. The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
