Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | Zon Pack |
| Certification: | CE |
| Model Number: | ZH-FQL-450A |
| Minimum Order Quantity: | 1SET |
| Price: | USD3850-4650/SET |
| Packaging Details: | wooden case |
| Delivery Time: | 40 working days |
| Payment Terms: | L/C D/A D/P T/T Western Union MoneyGram |
| Supply Ability: | 99sets/month |
| Machine Name: | Shrink Wrapping Machine | Max Packing Speed: | 35bags/min |
|---|---|---|---|
| Max Sealing Length: | 560mm | Max Sealing Height: | 150mm |
| Film Type: | POF | Product Size: | Width+Height≤380mm |
| High Light: | 35bags/min Automatic Food Packing Machine,35bags/min Automatic Shrink Wrapping Machines |
||

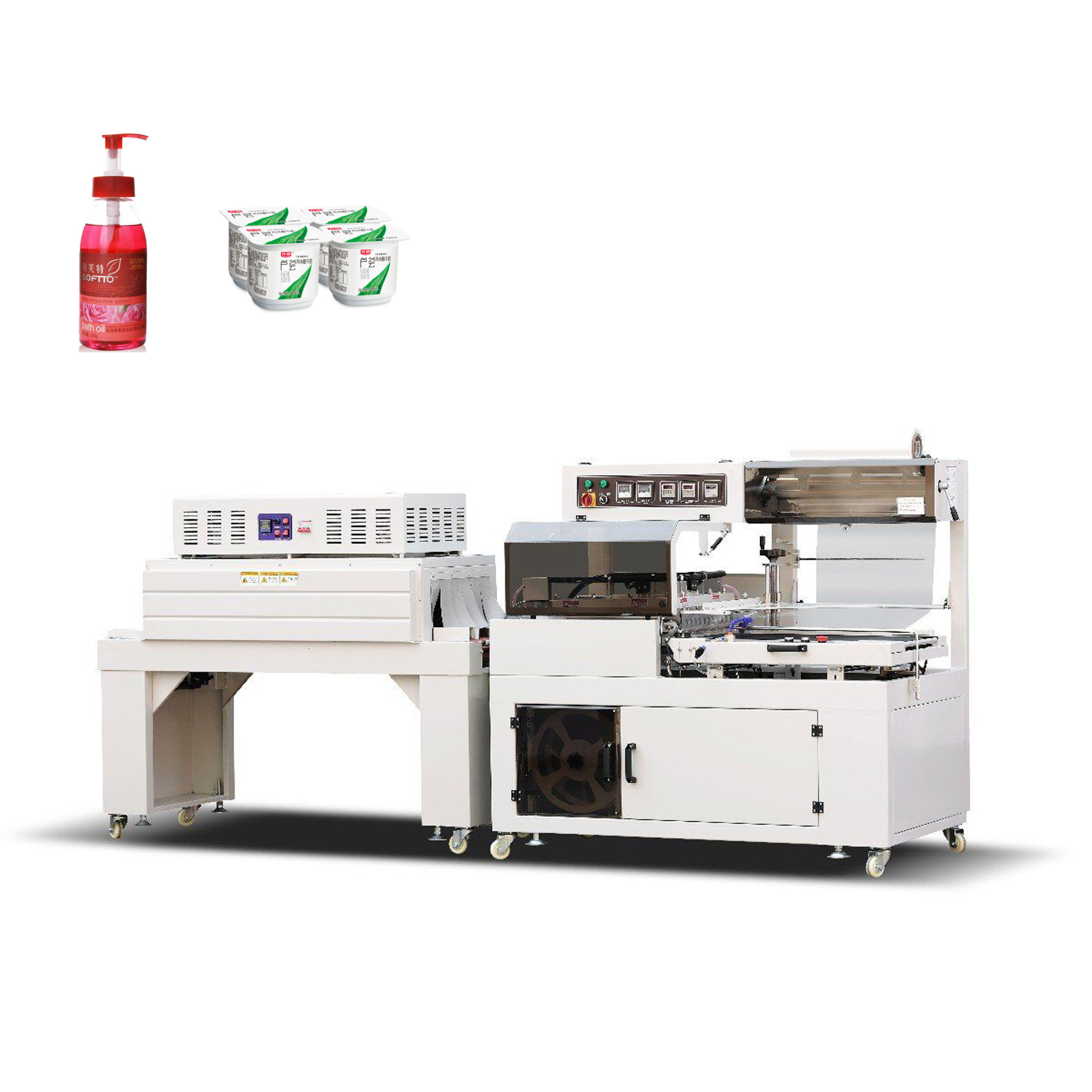

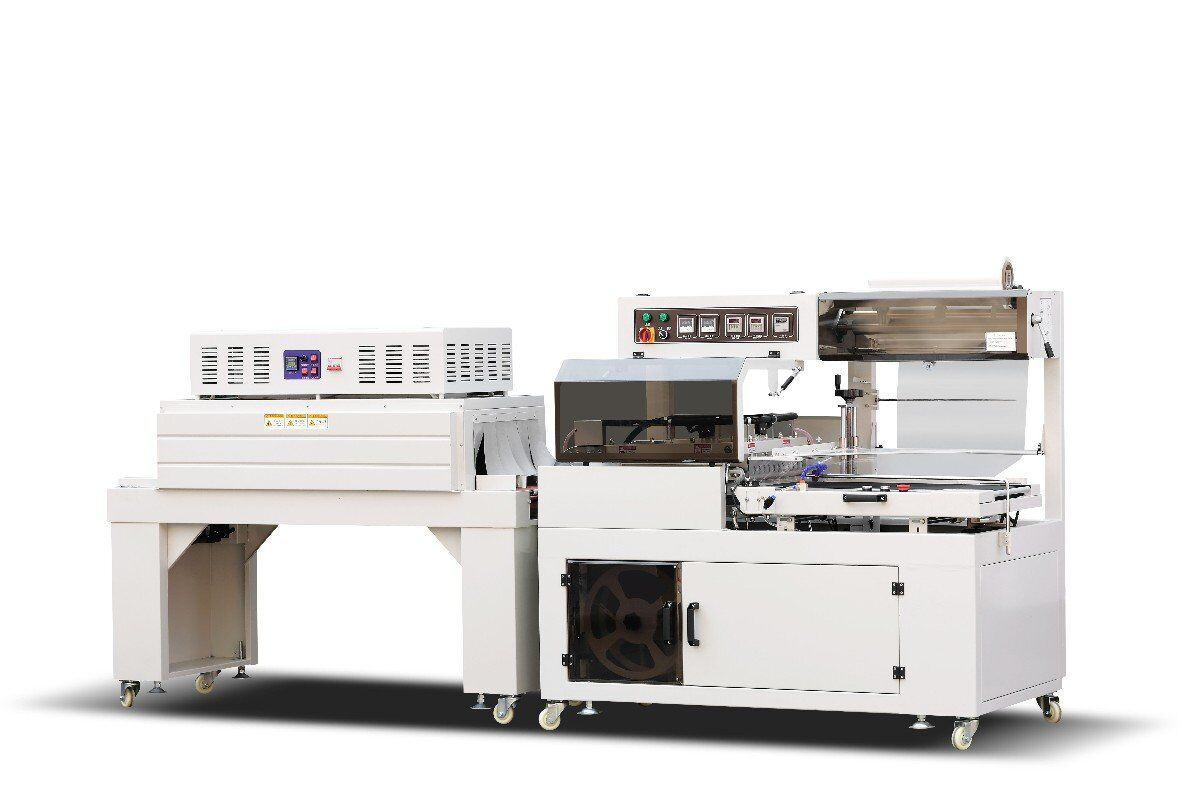

Carton Heat Shrink Wrap Packaging Box L-sealer Wrap Machine Automatic Shrink Wrapping Machines
Widely used in printing, color box, greeting card, photo album, medicine, electronics, daily chemical, cosmetics and other large-scale production industries.
| Technical Feature: | |
| 1. | Adopt PLC intelligent programming and touch screen control, convenient and simple to use and set up; |
| 2. | Fully automatic L-shaped sealing and shrinking machine packaging machine is a fully automatic unmanned packaging machine, which can be used with automatic packaging lines. feeding, bagging, sealing, cutting and shrinking are completed automatically. |
| 3. | High working efficiency. A shrink film is used to wrap the product or package, and the heat shrinks the film to tightly wrap the product or package. It enhances the product's display type, and increases the sense of beauty and value. |
| 4. | The articles packed by the heat shrinkable machine can be sealed, protected from moisture and pollution, and protect the goodsfrom external impacts |
| 5. | They have a buffer effect, especially It is used to prevent fragility when the container is broken when packing fragile products.In addition, the possibility of the product being disassembled or stolen can be reduced. |
| Technical Specification For Wrapping Parts | ||
| Model | ZH-FQL-450A | ZH-FQL-450A |
| Max Packing Capacity | 35pcs/min | |
| Max Sealing Length | 560mm | |
| Max Sealing Height | 150mm | |
| Packing width | 350mm | 450mm |
| Product Size | Width+Height≤380mm | Width+Height≤380mm |
| Power | 1.55Kw | 1.75Kw |
| Film Type | POF | POF |
| Max Film Size | 500×260mm | 600×260mm |
| working Height | 780-850mm | 780-850mm |
| Air Presure | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Dimension(L*W*H) | 1650×880×1450mm | 1850×980×1450mm |
| weight | 300Kg | 300Kg |
| Technical Specification For Shrimp | ||
| Power | 10KW | 10KW |
| Tunnel Size(L*W*H) | 1200*450*220mm | 1200*550*300mm |
| Conveyor Speed | 0-10m/min | 0-10m/min |
| Dimension(L*W*H) | 1600×720×1300mm | 1650×880×1450mm |
| Weight | 130Kg | 130Kg |
Machine detailed information

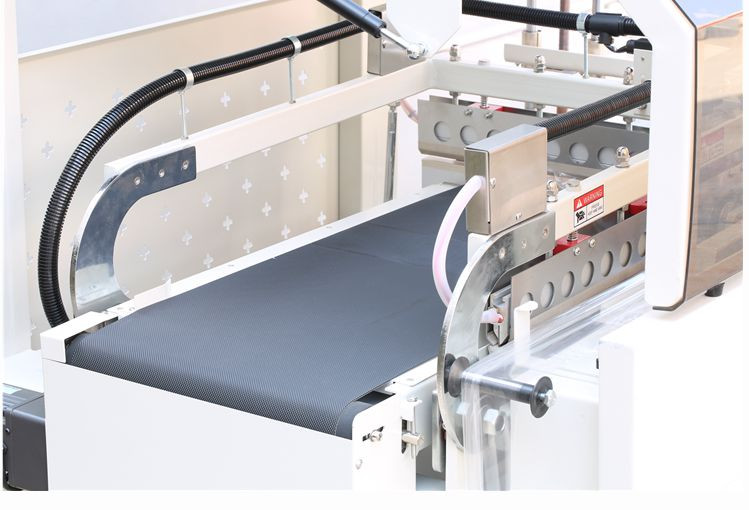

1. Wrapping Part
1). Wrapping Product inside

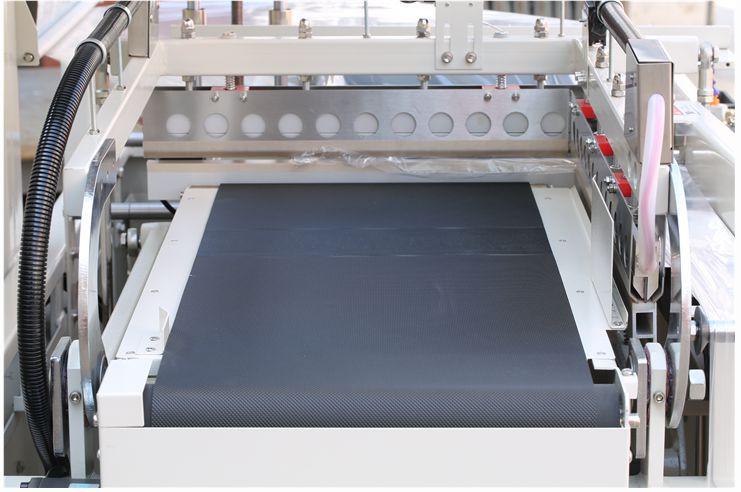

3. Cutting Part
1). L type Cutting Part , cutting more beautiful
