Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | Hangzhou,Zhejiang,China |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE |
| Model Number: | ZH-GD |
| Minimum Order Quantity: | 1set |
| Price: | USD25000-33000 |
| Packaging Details: | wooden cases |
| Delivery Time: | 35working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 99sets/month |
| Application: | Weighing And Counting | Feature: | Siemens PLC Control |
|---|---|---|---|
| Technical Feature: | High Accuracy | Benefit: | Easy To Operate |
| Packing Speed: | 35-50bags/min | Bag Type: | Stand-up Pouch,zipper Bag |
| Machine Material: | 304ss Food Grade | ||
| High Light: | 30 Pcs Premade Bag Packing Machine,Laundry Capsules Premade Bag Packing Machine,15Pcs Premade Bag Packaging Machine |
||

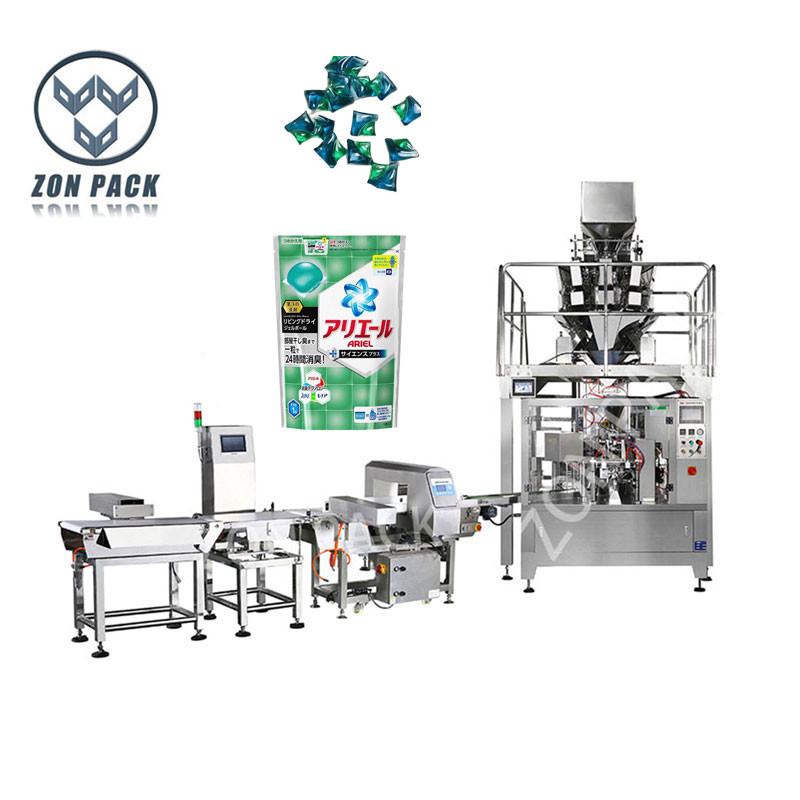

15 Pcs 30 Pcs Premade Bag Packing Machine For Laundry Capsules Packaging Machine
Premade Bag Laundry Beads Counting 20pcs 30pcs Pouch Packing Machine
Technical Feature:
1. Easy to operate, adopt advanced PLC controller, mate with touch screen and electric control system,
the man-machine interface is friendly.
2. Have a sensor,it will check the pouch,and no pouch or pouch open error, no fill, no seal.Save your products and pouchs.
3. The machine could be protected well when it stops with parking brake function.
4. Low consumption of the packing material. The machine is advanced with perfect sealing and leaving
complete prints with pre-made bags.
5. The measuring machine could be added based on the packing material(such as automatic screw filling machine,
intelligent combined weigher, liquid filling machine).
6. It conform to hygienic standards of food processing industry. The contact parts are made of stainless steel or
other materials which suits the hygienic standards to ensure the hygienic security.
7. It is suitable for a broad range packing materials, suit for multi-lay compound, monolayer PE , PP and so on
preformed bagmade by film and paper.
This 8 rotary packing machine is suitable for laundry pods products weighing or counting,including automatically transport,weighing,filling,packing,date printing and sealing.
For this machine,can make zipper bag,stand-up pouch,premade bag and so on.
| Technical Specification | |
| Model | ZH-BG10 |
| Packing Speed | 30-50 Bags/Min |
| Packaging Accuracy | ±0.1-1.5g |
| System Output | ≥8.4 Ton/Day |
| Bag Size | Width:100-300 Length:150-400mm |
| Bag types | stand up bag,zipper bag,flat bag |
| Target weight | 5-5000g |

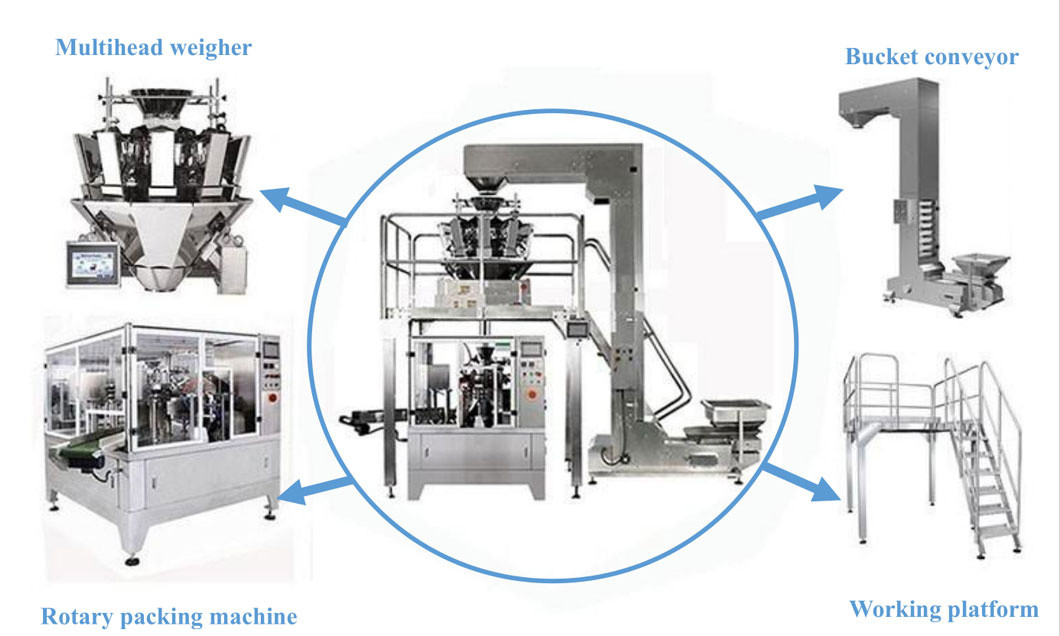

Unit system:
1. Infeed bucket conveyor:
For feeding the product to multihead weigher.
2. Multihead weigher:
For weighing or counting solid products.
3. Working platform:
For supporting the multihead weigher.
4.Rotary packing machine:
For premade bag packing,such as zipper bag,stand-up pouch and so on.

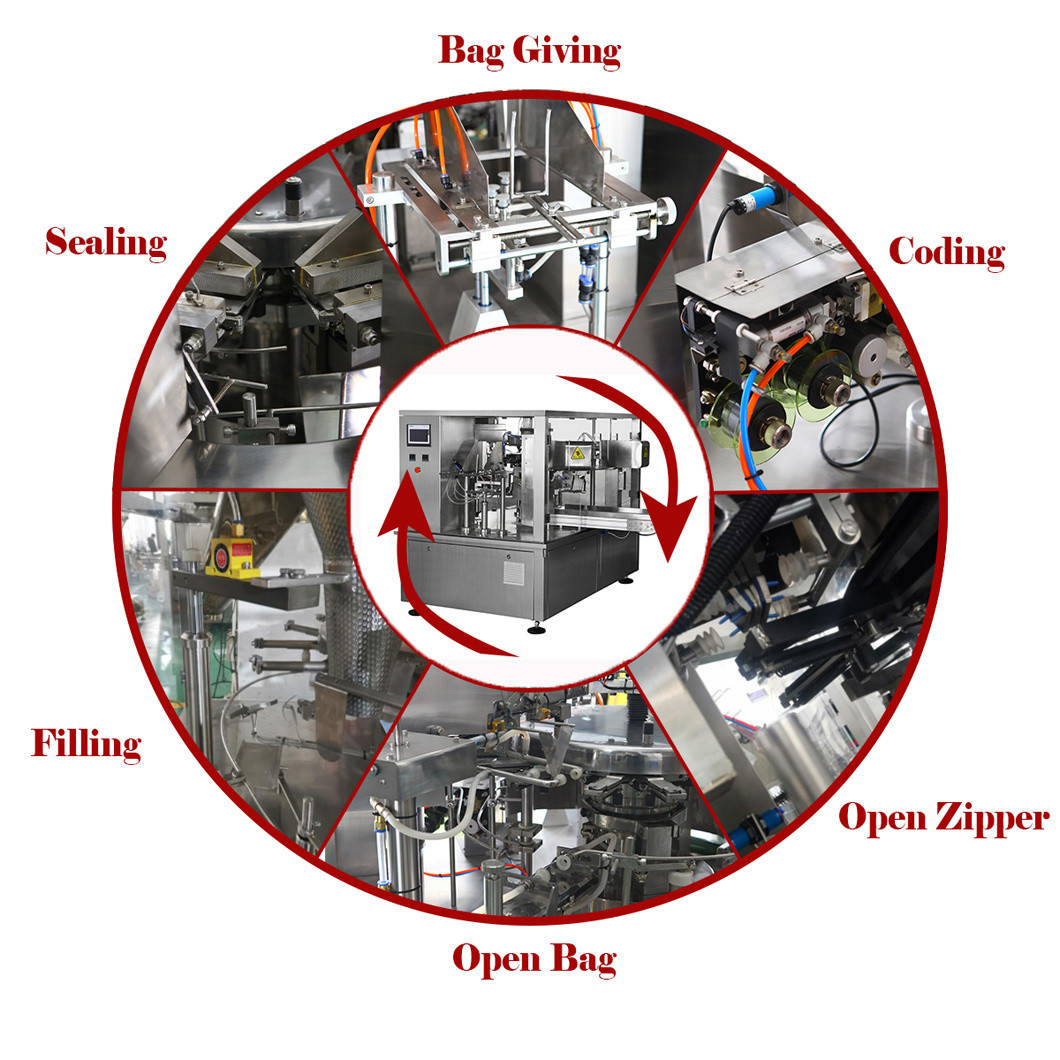

Station process:
1. Bag Feeding 2. Date Coding 3. Bag Opening 4. Filling
5. Filling 6. Stand by 7.Heat Sealing 8.Forming & Output
Our partners:
Our Cases:
Pre-sales service After-sales
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3. Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4. The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
