Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE |
| Model Number: | ZH-1120S |
| Minimum Order Quantity: | 1 SET |
| Price: | USD800-900/SET |
| Packaging Details: | wooden case |
| Delivery Time: | 25 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 99sets/month |
| Product Name: | Vertical Film Sealing Machine | Function: | Food Container Sealing |
|---|---|---|---|
| Keyword: | Plastic Sealer Machine | Name: | Plastic Film Sealer |
| Suitable For: | Food Packing | Usage: | PP Bag Sealer |
| Material: | Stainless Steel | Application Fields: | Food Product |
| Sealing Speed: | 0-24m/min | Model: | Continuous Band Sealer FR-900 |
| High Light: | Food Packing Vertical Heat Sealer,Premade Bag Automatic Heat Sealing Machine,24m/min Automatic Heat Sealing Machine |
||

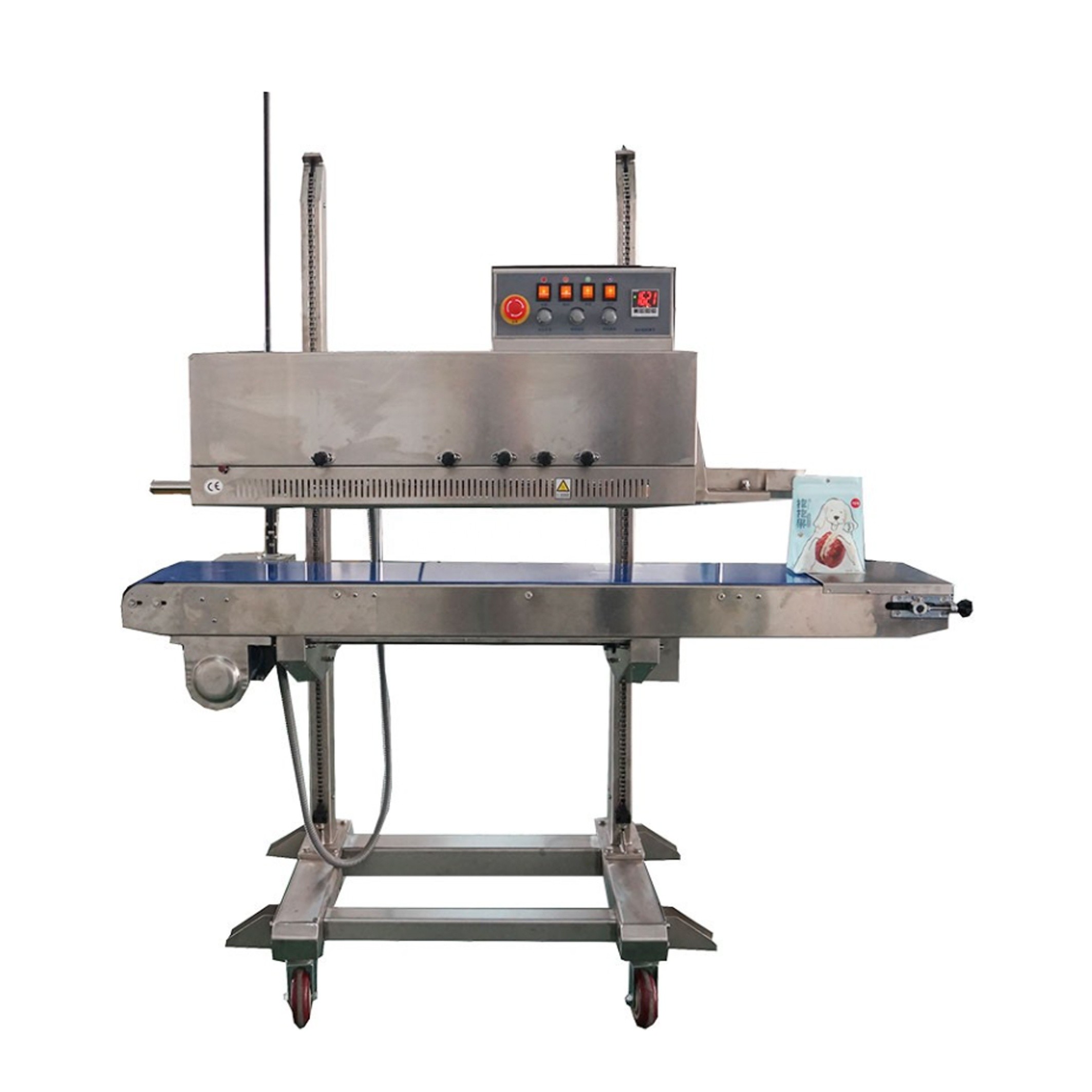

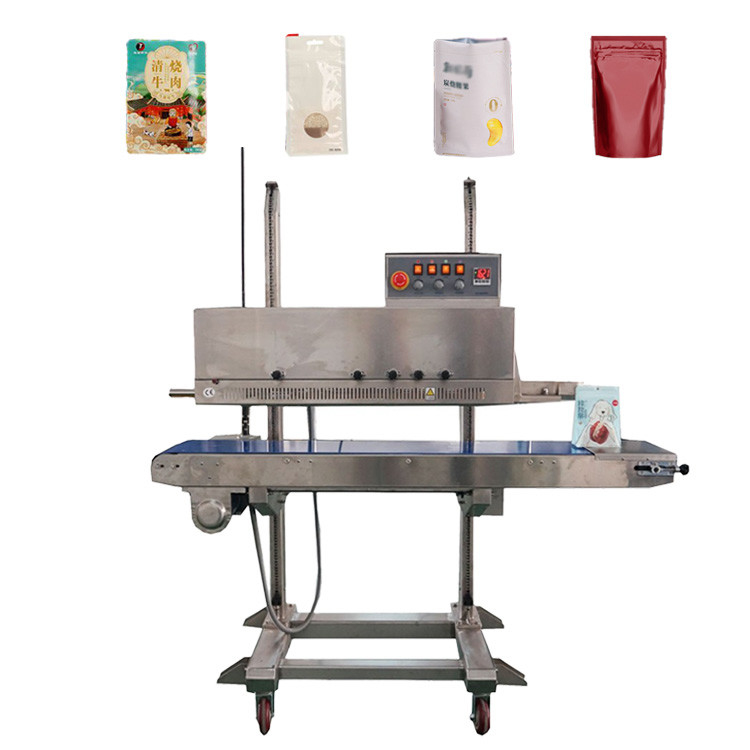

Automatic Vertical Continuous Band Sealer Heat Sealing Machine For Stand-Up Pouch Sealing Machine
Plastic Bag Heat Sealing Machine Continuous Seal Premade Bag For Food Snack
1. Product Application
The machine can seal all kinds of heat sealable materials, which adopts constant temperature control system and stepless speed adjusting transmission mechanism. Both temperature and height of conveyor table are adjustable. The machine works with solid-ink coder or color ribbon printer to print the colored labels while sealing. They are able to print at high speed with instant dry and highly legible letters that have a good adhesion property. Various colors are selectable. Counting device is optional.
| 2. Parameter Of Sealing Machine | |
| Model | ZH-1120S |
| Voltage (V/Hz) | AC 380/50 220/50 |
| Motor Power (W) | 245 |
| Sealing Power (W) | 300×2 |
| Printing Heating Power(W) | 40×2 |
| Speed(m/min) | 0-12 |
| Seal Width(mm) | 10 |
| Temperature Range(℃) | 0-300 |
| Printing Type | Solid ink roller |
| Distance from Sealing Center to Conveyor (mm) | 100-500 |
| Height from seal Head to Floor(mm) | 700-1100 |
| Conveyor Size(L×W )(mm) | 1400×250 |
| Max. Conveyor Load for Single Bag(kg) | 5 |
| Overall Conveyor Load(kg) | 15 |
| External Dimensions(L×W×H) (mm) | 1450×680×1480 |
| Net Weight (kg) | 100 |
4. Main Features
1) Simple structure type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Height can be adjusted according to the bag length
6)Can printe the date in the bag when it sealing

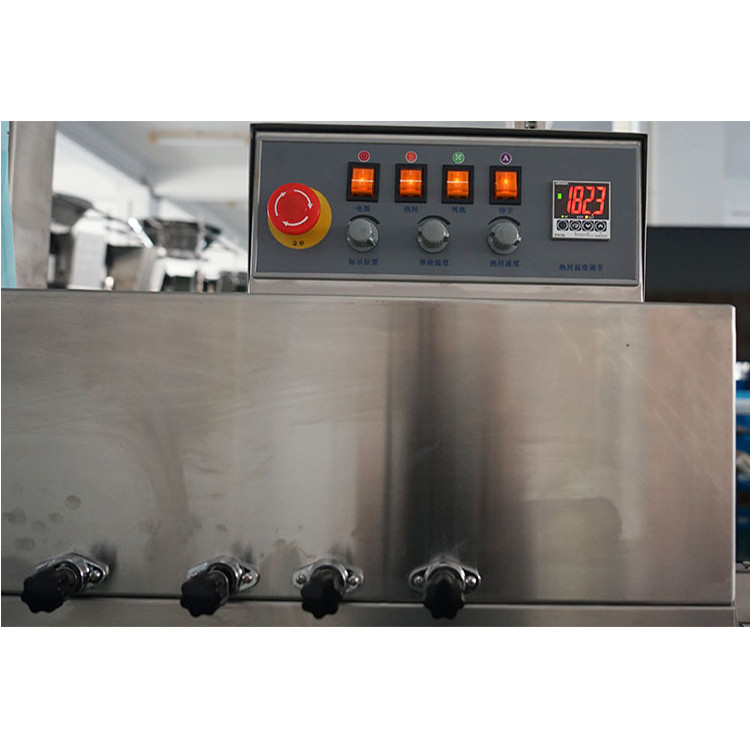

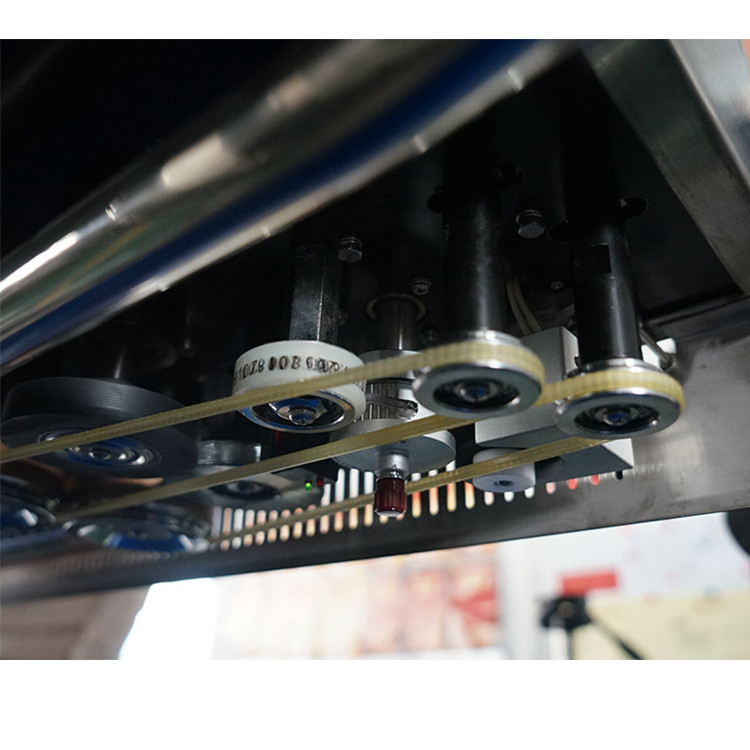

6. Machine details
7. Company profile
