Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE |
| Model Number: | ZH-AL10 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD11000/SET |
| Packaging Details: | wooden case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 99sets/month |
| Model: | ZH-AL10 | Weighing Range: | 100-3000g |
|---|---|---|---|
| Max Weigh Speed: | 50 Bags/Min | Accuracy: | ±1-5g |
| Hopper Volume(L): | 5 | Driver Method: | Stepper Motor |
| Interface: | 7"HMI/10"HMI | Power Parameter: | 220V 50/60HZ 1200W |
| Package Size(mm): | 1780(L)*1410(W)*1700(H) | Gross Weight(Kg): | 630 |
| High Light: | Big Target Weight Multihead Weighers,Salad Multihead Weigher Machine,Stepper Motor Multihead Weighers |
||

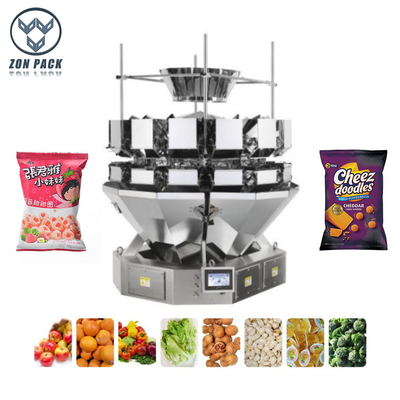

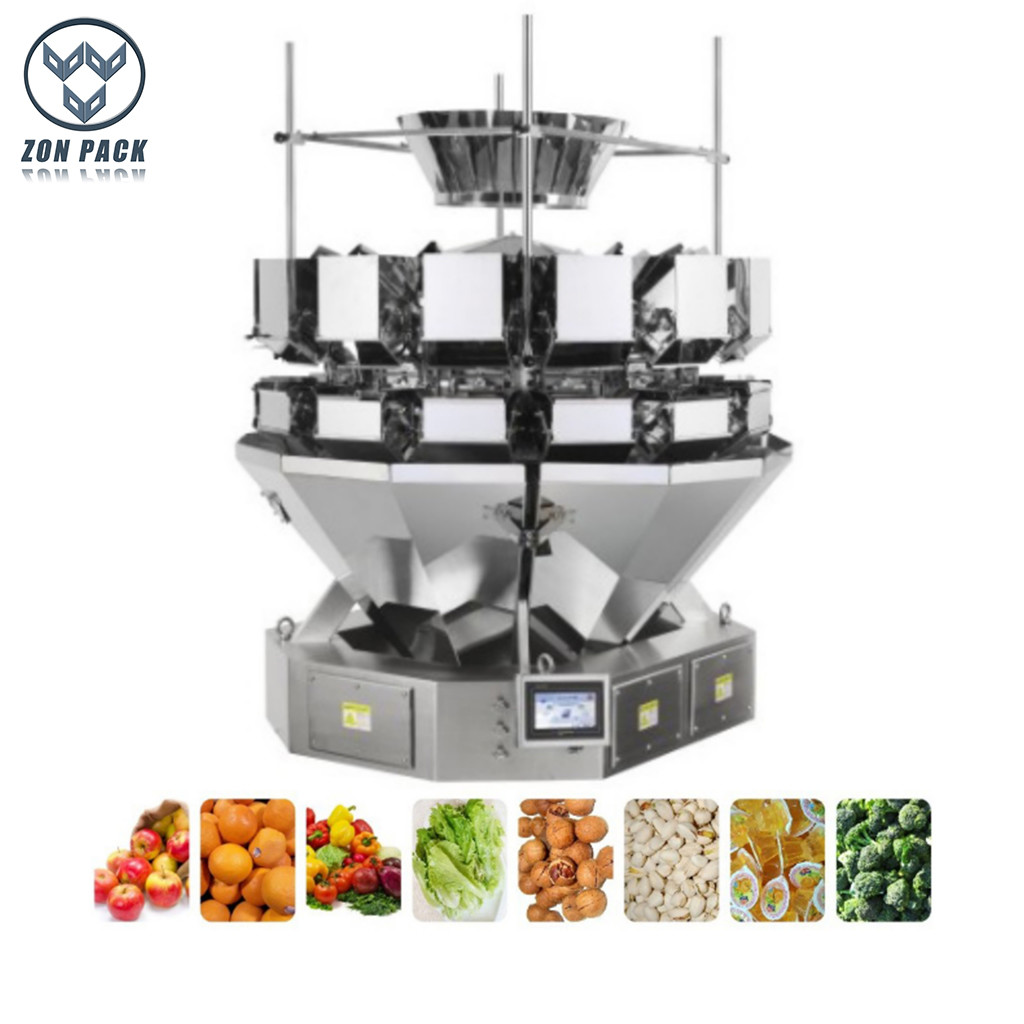

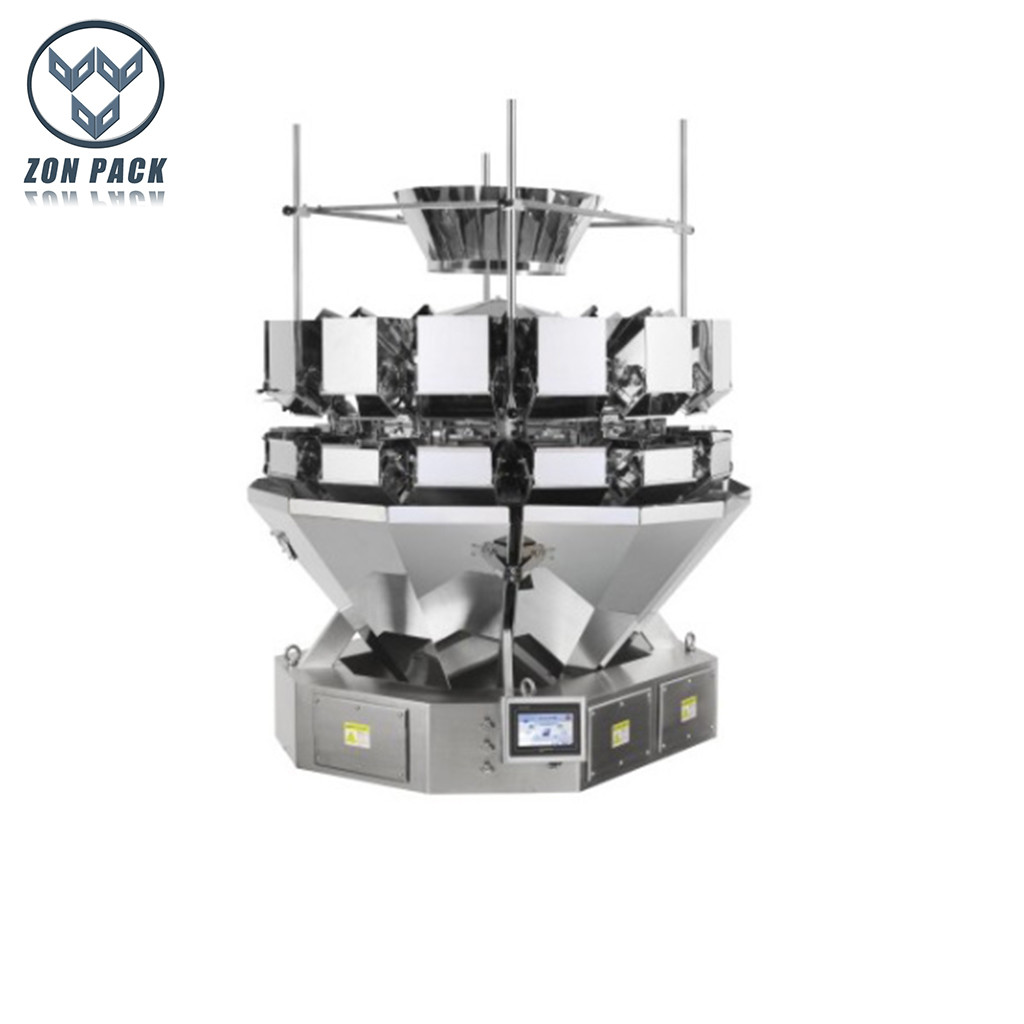

Big Target Weight Multihead Weighers Salad Multihead Weigher Machine For Vegetables
Automatic Weighing Frozen Food Candy Banana Chips Spice Multihead Weigher
High Accuracy Cookies Biscuits Weighing 300g 500g Multihead Weigher Packaging Machine
CE Certification Candy Sugar Chocolate Weighing 200g 300g 10 Heads Multihead Weigher Packaging Machine
ZH-A10 High Speed 200g Cherry Tomato Plastic Tray Punnet Weighing Automatic Filling Packing Machine
ZH-AM10 high accuracy frozen food multihead combination weigher nuts packaging machine
Product Description

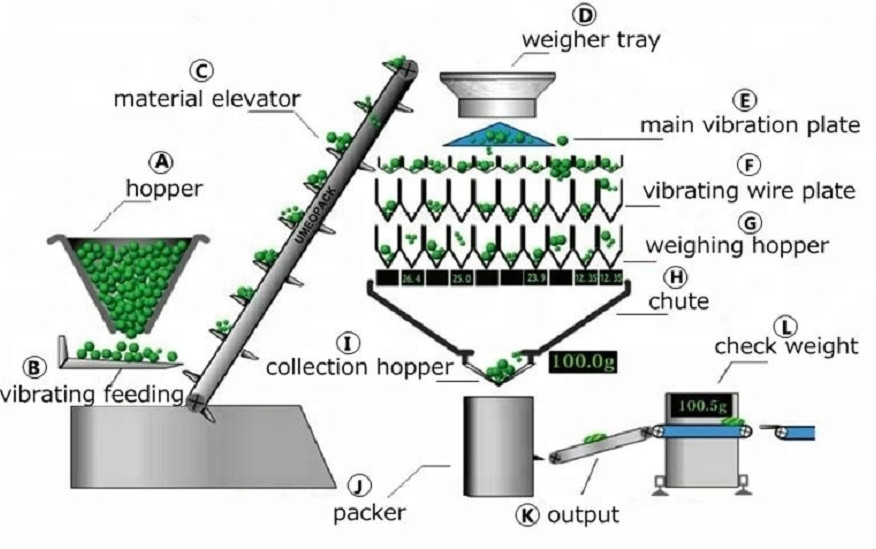

Ⅰ. Main function
1. The amplitude of vibrator can be auto-modified for more efficient weighing.
2. Adopt high precision and high accurate loadcell of famous brand, resolution is improved up to 2 decimal;
3. Multi-time drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper.
4. Modify hopper open speed and open angle basing on the characteristics of measured material can prevent material blocking the hopper.
5. No products auto pause function can improve weighing stability and accuracy;
6. 7" / 10 touch screen can meet various requirements;
Ⅱ . Parameters
| Technical Specification | |
| Model | ZH-A10 |
| Weighing Range | 10-2000g |
| Max Weigh Speed | 65Bags/Min |
| Accuracy | ±0.1-1.5g |
| Hopper Volume(L) | 1.6/2.5 |
| Driver Method | Stepper Motor |
| Option | Timing Hopper/ Dimple Hopper/ Printer/ Overweight Identifier / Rotary Top Cone |
| Interface | 7"HMI/10"HMI |
| Power Parameter | 220V/ 1000W/ 50/60HZ/ 10A |
| Package Volume (mm) | 1650(L)×1120(W)×1150(H) |
| Total Weight(Kg) | 400 |
ZH-AM10 It is suitable for weighing eisure foods such as candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins etc. and big shell nuts, hardwares, dried fruits, frozen foods, snack foods, meatballs and so on.
Our service :
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.

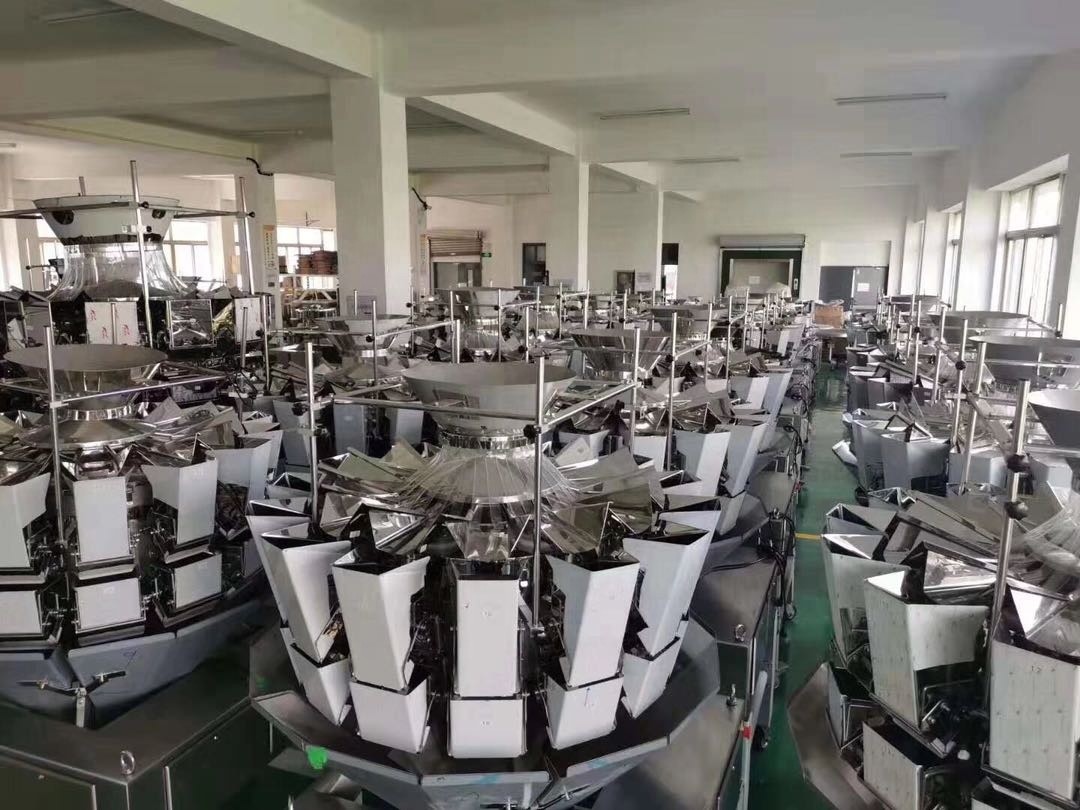

* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are
dedicated to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3. Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4. The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
