Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 set |
| Price: | USD 5000-22000/srt |
| Packaging Details: | Film pack inside, Wooden case outside. |
| Delivery Time: | WITHIN 25 WORKING DAYS AFTER PAYMENT CONFIRMATION |
| Payment Terms: | T/T |
| Supply Ability: | 120 sets per month |
| Name: | Vertical Packing Machine | Bag Type: | Pillow Bag |
|---|---|---|---|
| Type: | Multi-Function Packaging Machine,Sealing Machine,Automatic Preformed Pouch Pet Food Packaging Machine Unit,Packaging Line,plastic Bag/1kg Sugar/1kg Bag Packing Machine | Voltage: | 220V,380V,50HZ,220V/50Hz,220/HZ; 110/60 |
| Condition: | New | Driven Type: | Electric,Pneumatic |
| Packing Speed: | 35-60bags/min | Packing Material: | Heatsealed Composite Film Etc,Flour,OPP/CPP PT/PE KOP/CPP ALU-FOIL |
| Warranty: | 18years | Application: | Food,Machinery & Hardware |
| Automatic Grade: | Automatic | ||
| High Light: | Gusseted Bag Automatic Vertical Packing Machine,PLC Control Automatic Vertical Packing Machine,Automatic Food Packing Machine PLC Control |
||

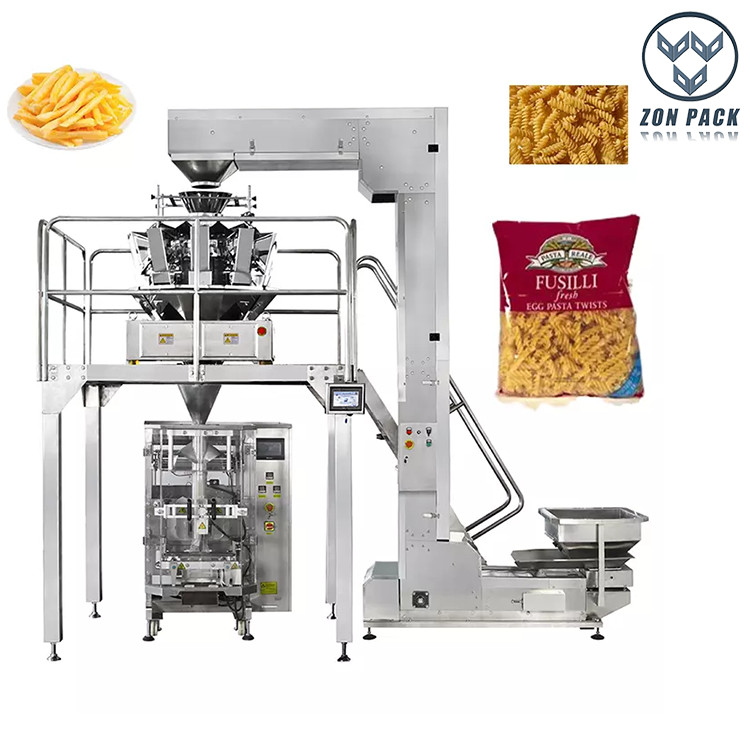

Multi-Function Automatic Pasta Chips Vertical Packing Machine Pillow Bag Gusseted Bag With PLC Control
Automatic Vertical Pillow Bag Punching Bag Packing Machine For Nuts Candy Snack Hardware
Products Description
Application
It is suitable for weighing and packing grain, stick, slice, globose, irregular shape products such as puffy food, snacks,candy,jelly,seeds,almonds, chocolate, nuts, pasta, coffee bean, sugar, chips, pet food, fruits, roasted seeds,frozen food,vegetable,fruits, small hardware, etc.
| TECHNICAL SPECIFICATION | |
| Model | ZH-BL10 |
| System Output | ≥ 8.4 Ton/Day |
| Packing speed | 30-70 Bags / Min |
| Packing Accuracy | ± 0.1-1.5g |
| Bag size(mm) | (W) 60-200 (L)60-300 for 420VFFS |
| Bag type | Pillow bag, standing bag (gusseted), punch, Linked bag |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET, |
| Power Parameter | 220V 50/60Hz 6.5KW |
Main features
1. Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.
2. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.
3. Single-belt pulling with servo of high precise positioning makes film transporting system stable, servo motor from Siemens or Panasonic.
4. Perfect alarm system to make problem solved quickly.
5. Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing.
6. Machine can make pillow bag and standing bag (gusseted bag) according to customer's requirements. Machine also can make bag with punching hole & linked bag from 5-12 bags and so on.

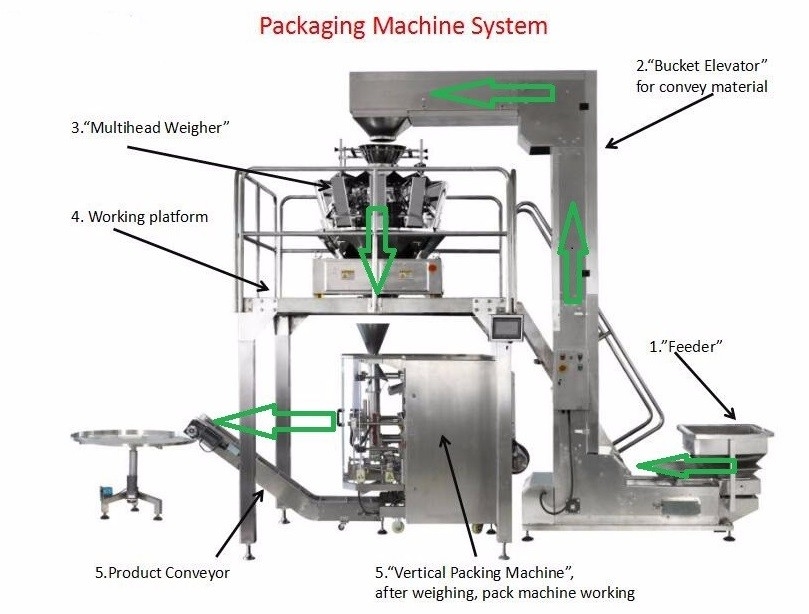

7. Working with weighing or filling machines such as multihead weigher, volumetric cup filler, auger filler or feeding conveyor, process of weighing, bag making, filling, date printing, charging (exhausting), sealing, counting and delivering finished product can be completed automatically.

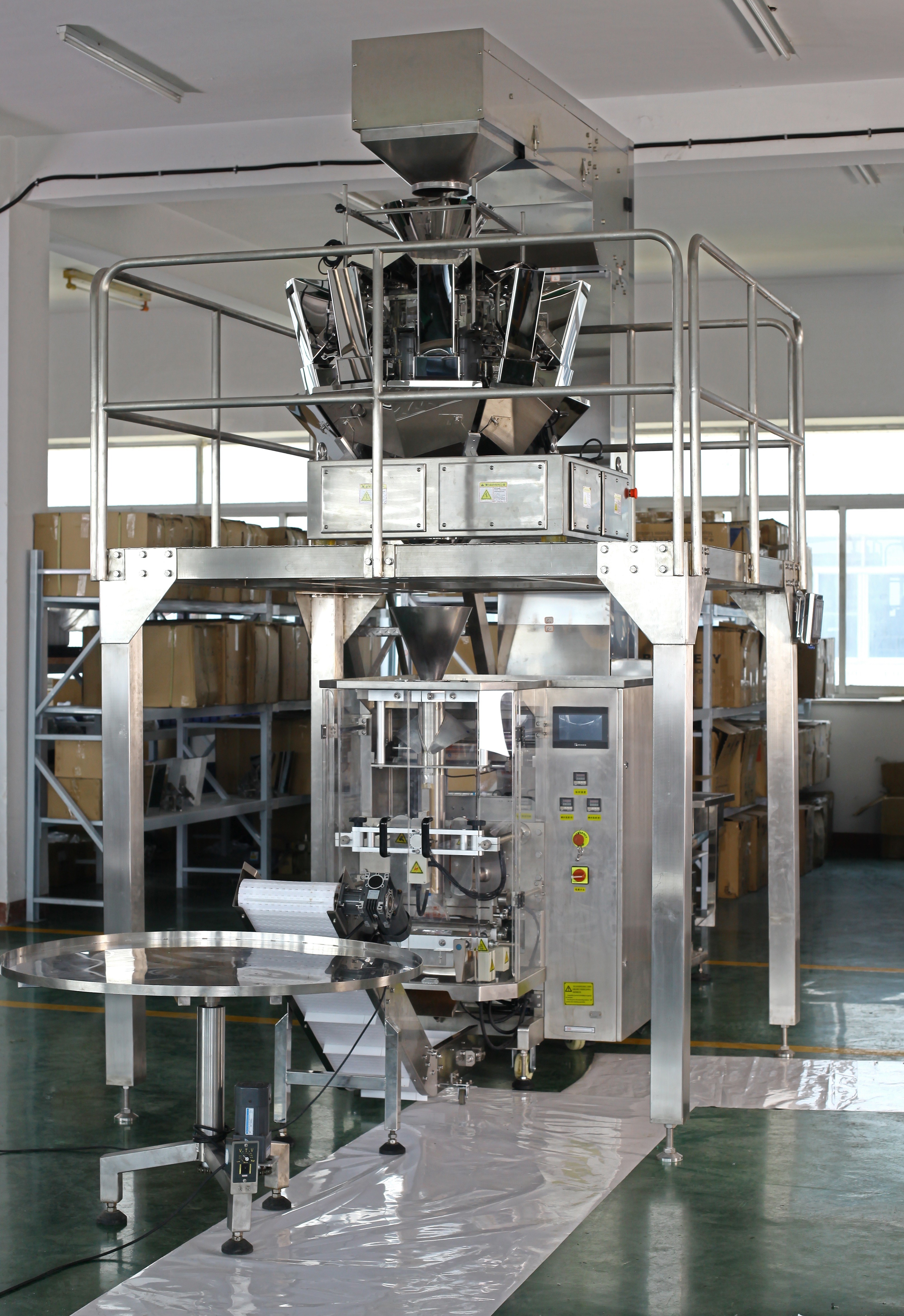

Machine details

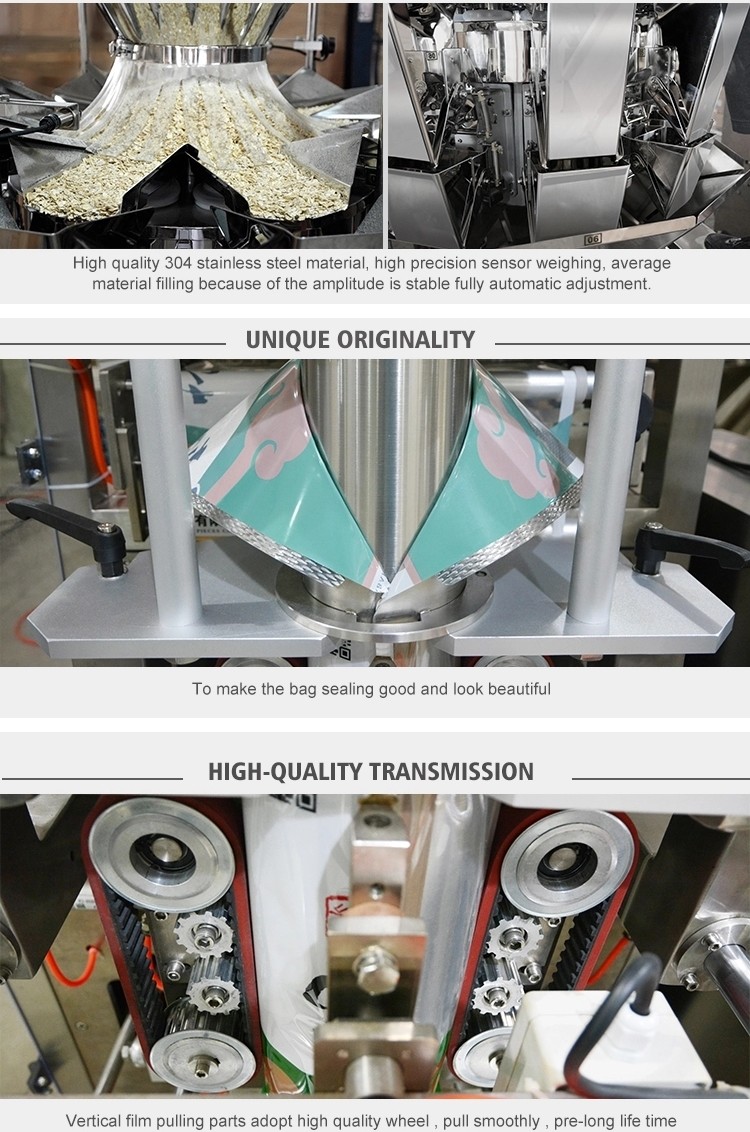

Weighing machine detail image
Company profile
