Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic

Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic
Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic
Basic Information
Place of Origin: China , zhejiang
Brand Name: ZONPACK
Certification: CE SGS
Model Number: ZH-GD8-200
Minimum Order Quantity: 1sets
Price: about 30,000 USD per set
Packaging Details: Wooden case
Delivery Time: 35working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 99+sets+per month
Get Best Price Contact Now
Voltage: 380V 60Hz Automatic Grade: Automatic
Condition: New Packaging Type: Pre-made Bag With Zipper.,flat Bag,stand Up
Function: Filling , Sealing , Wrapping Application: Food , Nuts , Jerky Beef, Grain,bean
After-sales Service Provided: Online Support,Video Technical Support,Engineers Available To Service Machinery Overseas Packing Speed: 25-50Bags/min
Warranty: 1 Years Product Name: Automatic Packing Machine For Pre-made Bag
Model: ZH-GD8-200
High Light:

Automatic Ziplock Packaging Machine

,

Multifunctional Ziplock Packaging Machine

,

Automatic Zipper Pouch Packing Machine

Automatic Multifunctional Cranberry Blueberry Cashew Nut Almond Peanut Stand Up Zipper Pouch Ziplock Packing Machine



Speed: 25-60 bags/min             Accuracy: 1.5g




Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic 0



MAIN FEATURES



  • Wide application: various shapes, state and nature of products (such as candy,chips,nuts,frozen dumplings,biscuits,mothballs,pet food,puffed food,hardware,plastic parts, etc.)
  • Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
  • Easy to operate: PLC controller, HMI system, fault indication on the touch screen.
  • The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch.
  • Automatic checking system can check bag situation, filling and sealing situation.
  • The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing.
  • Stainless steel 304 /other materials ensure sanitation and safety, meet the GMP standard.
  • Internal grooved cam design: The echnology with high precision, suits for max. packing speed: 65cycles/min with stable running.





SPECITION



  Model

  ZHP-GD200/250/300

  Weight

  10-2000 grams

  Speed

  25-60 packs/min

  Accuracy

  1.5 grams

  Bag style

  pre-made pouches,such as Flat pouch, Stand-up    pouch, Zipper pouch, Spout pouch, M gusset

  pouch, Paper pouch, Aluminium foil pouch, etc.

  Bag size

  Width 90-300mm, length 100-330mm

  Power

  220V/380V, 50HZ/60HZ, 6.75KW

  Air consumption

  1.5m3/min





APPLICATION



GRANULES TYPE


• Block material:fish boll,candy,red jujube,cereal,peanut,daily necessities, puffed food,etc.
• Granules:granular drugs, capsules, seeds, coffee bean, nuts, fertilizers, hardware, etc.

Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic 1

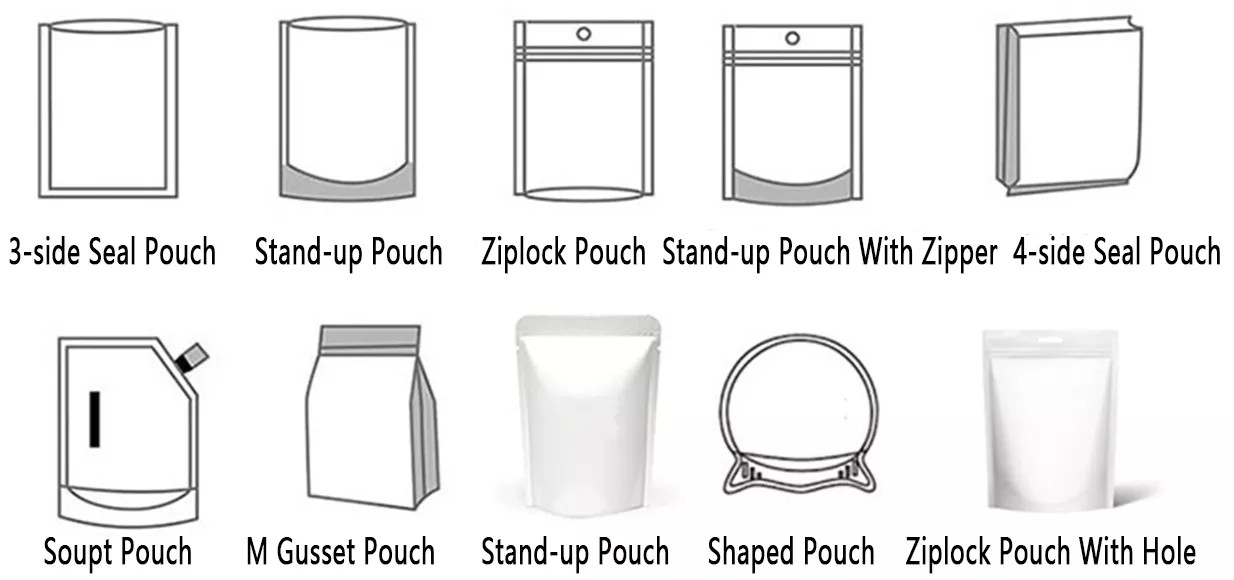

POUCH TYPE


• It can adopt different types of pre-made pouches,such as Flat pouch, Stand-up pouch, Zipper pouch, Spout pouch, M gusset pouch, Paper pouch, Aluminium foil pouch, etc.

Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic 2







SYSTEM UNITS



a. Conveyor (Z-type conveyor and inclined type conveyor)

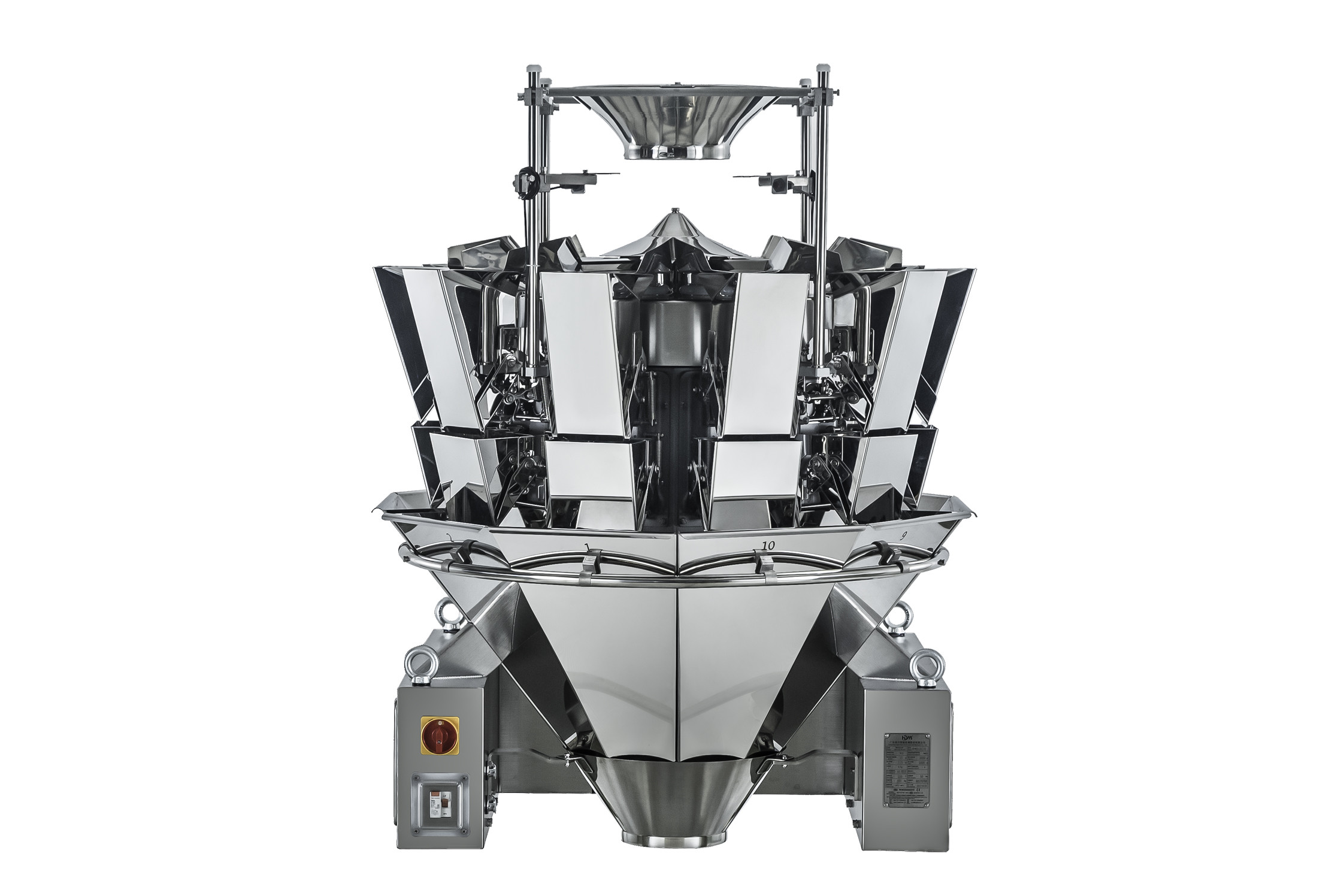

b. Multihead weigher / linear weigher (2/4/10/14/20 heads)

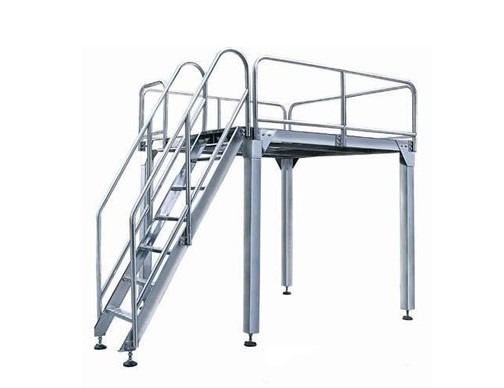

c. Working platform

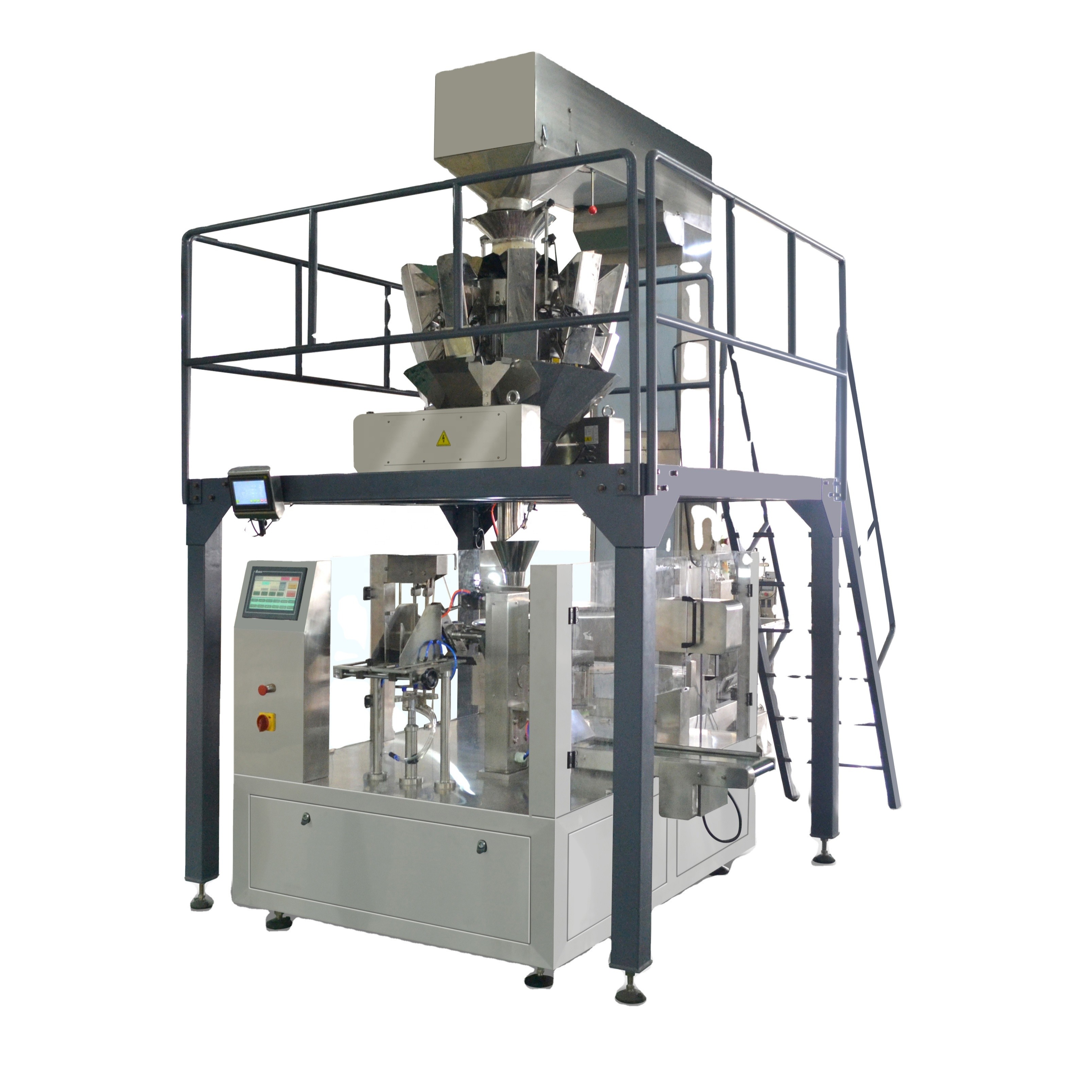

d. Rotary filling and sealing packing machine

e. Weight examine machine and metal detector machine







Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic 3



PACKING PROCEDURE



Picking up bags - coding date - open bag - filling - sealing - out put



Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic 4



DETAILS



Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic 5



PACKAGE AND DELIVERY



Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic 6





ABOUT ZON PACK






Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic 0



Cashew Nut Almond Peanut Ziplock Packaging Machine Automatic 8
