Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-CZ18-SS-B |
| Minimum Order Quantity: | 1 Set |
| Price: | 3000-4000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-25 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 299 Sets per month |
| Material: | 304SS | Voltage: | 220V |
|---|---|---|---|
| Bucket Material: | PP, Stainless Steel | Storage Hopper Size: | 650*650mm |
| Bucket Volume (L): | 0.8/1.8/4L | Power: | 0.75-3.5KW |
| Control: | VFD | Capacity: | 0.5-12m3/h |
| High Light: | VFD z bucket elevator,3.5KW z bucket elevator,VFD z type conveyor |
||

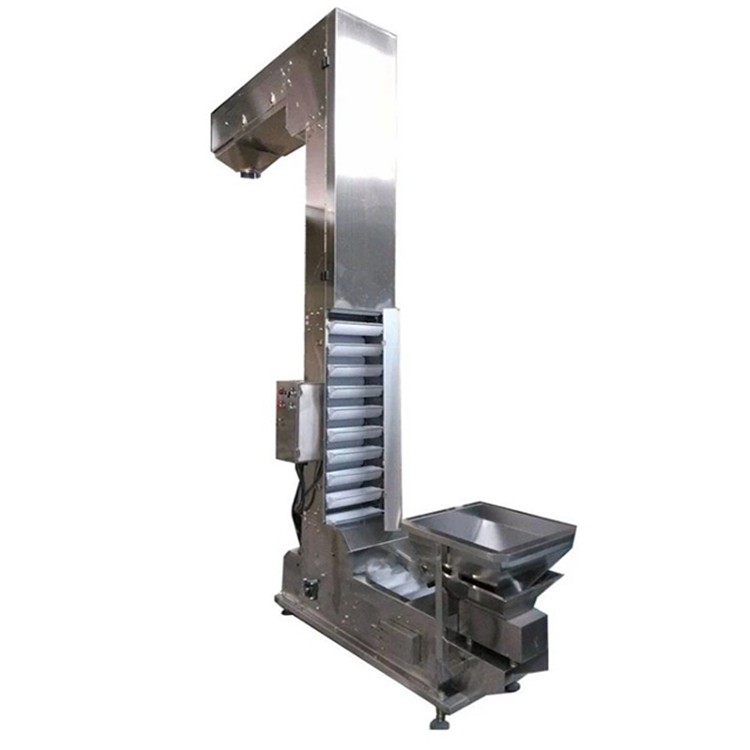

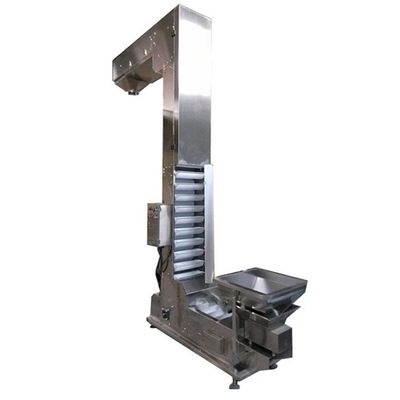

304 stainless steel food grade VFD control Z type conveyor with storage hopper
Main Features
1) The buckets material can be food grade PP material or SUS304,which can resistance high and low temperature.
2) Continuous overlapping bucket lift virtually eliminates spillage.
3) Gentle handling and quiet operation.
4) Single or multiple discharge points available.
5) Low noise and maintenance.
| Technical Specification | |||
| Model | ZH-CZ08-SS-B | ZH-CZ18-SS-B | ZH-CZ40-SS-B |
| Bucket Volume (L) | 0.8 | 1.8 | 4 |
| Convey Capacitance (m3/h) | 0.2-2 | 4-6.5 | 6-12 |
| Power | 220V or 380V 50/60Hz 0.75kW | ||
| Package Size (mm) | 1900(L)*950(W)*1150(H) | ||
| Bucket material | PP or 304SS can be optional | ||
| Storage hopper size | 650mm*650 mm/ 800 mm *800 mm/ 1000 mm *1000 mm | ||
Machine Application:
The conveyor is applicable for vertical lifting of granule material such as corn, food plastic
and chemical industry, etc.

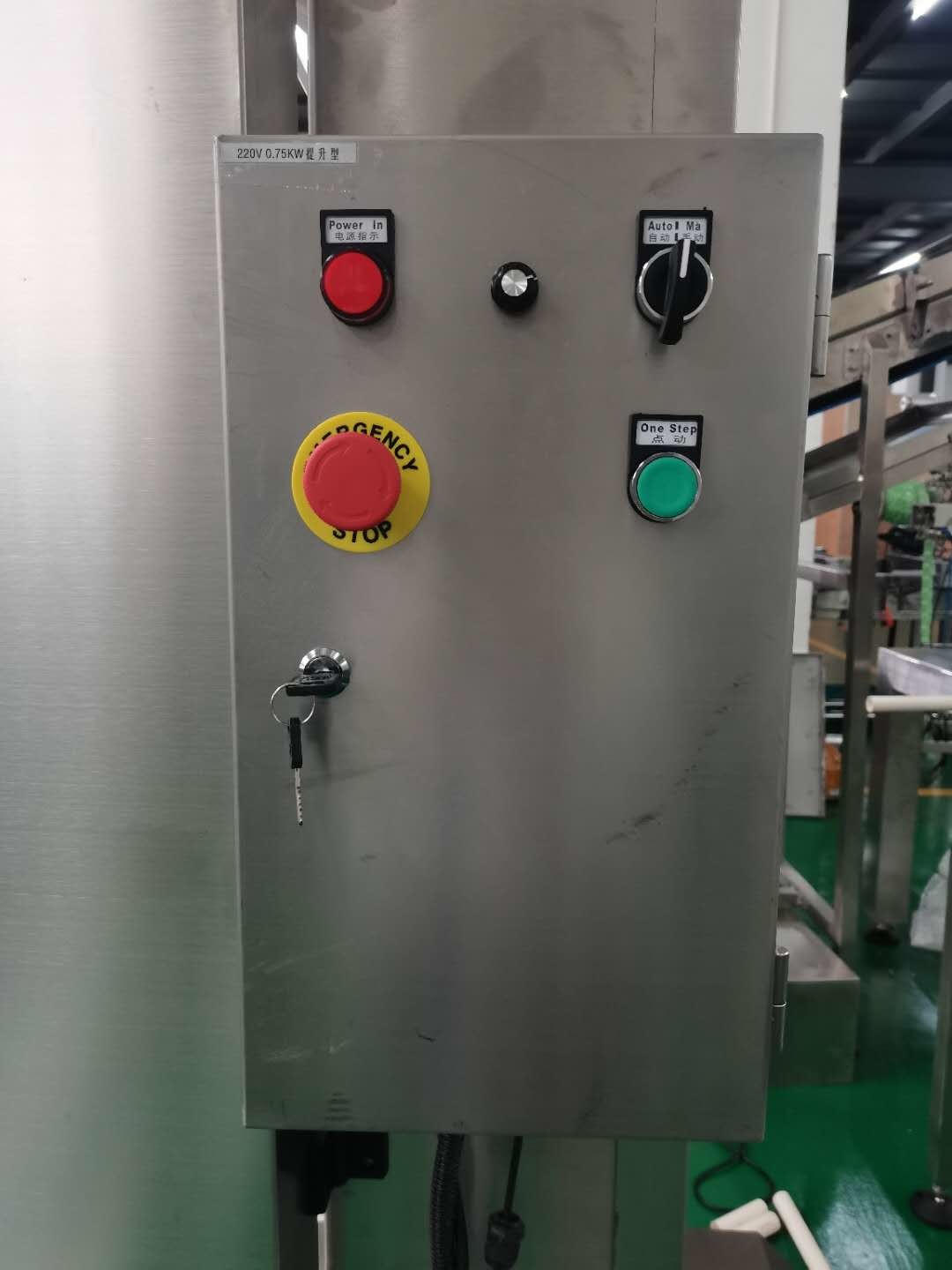

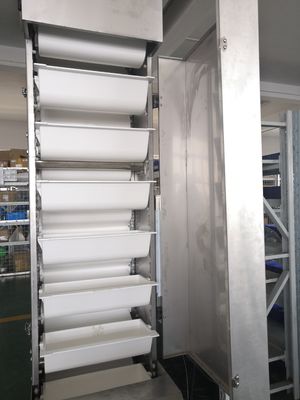

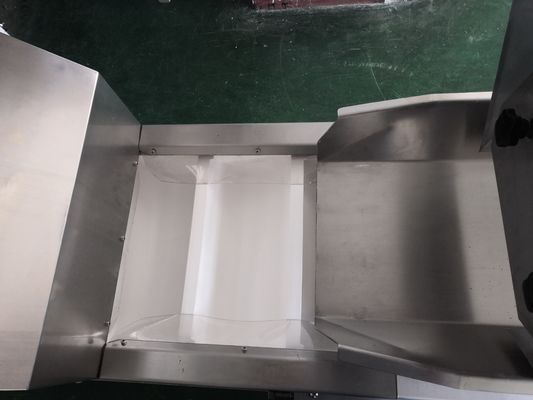

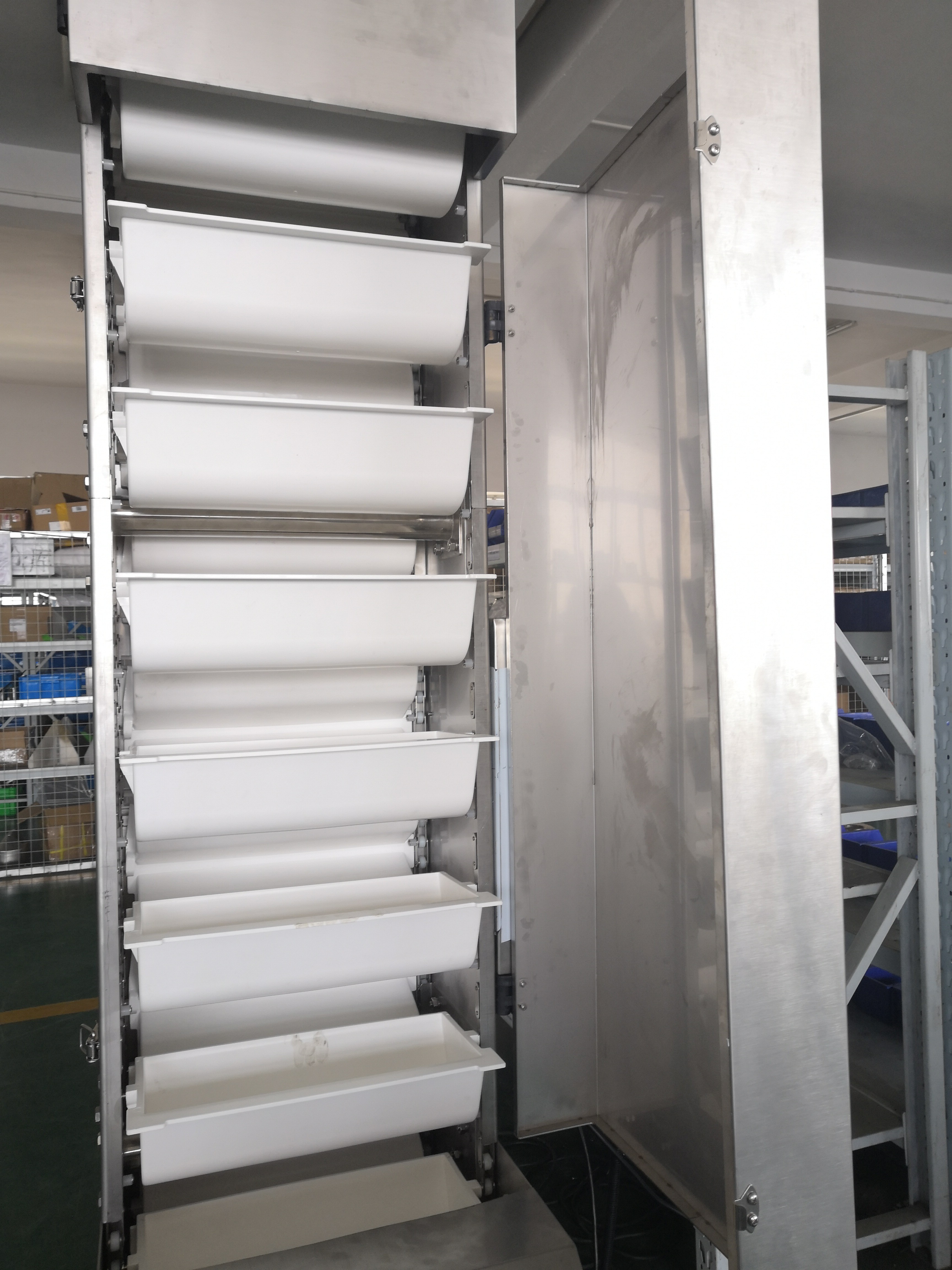

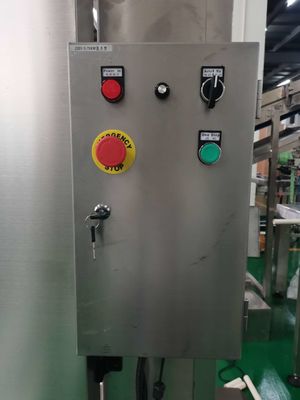

Machine Details
Case Shows
