| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-DM300 |
| Minimum Order Quantity: | 1 Set |
| Price: | 5500-5700USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-25 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Food Grade Metal Detector | Model: | ZH-DM300 |
|---|---|---|---|
| Belt Speed: | 25m/min | Window Width: | 300mm |
| Frame Material: | SUS304 | Power Supply: | 220V/110V 50/60Hz |
| Alarm: | Stop Or Rejector | Rejector: | Air Blow, Pusher, Shifter |
| Monitor: | LCD | Protection Level: | IP30/IP54/IP66 |
| High Light: | IP54 metal detector sensitivity food industry,220V metal detector sensitivity food industry,IP54 conveyor metal detector equipment |
||

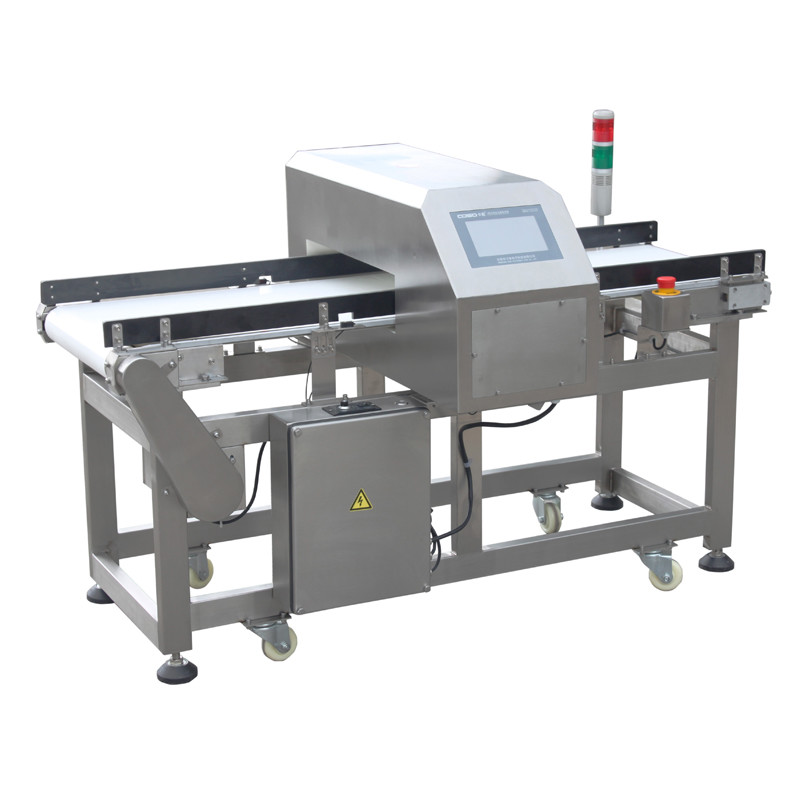

High sensitivity and stability sea food metal detector with alarm light
Technical Feature
1. Digital Signal Process Technology, high stability and high sensitivity
2. Auto learn and manual learn to ensure wet/dry product detection well
3. Color touch screen display, multi-function operation interface
4. Fast assemble and disassemble conveyor design, daily maintenance convenient
5. Multi-Languages operation system including Chinese, English languages
6. Full stainless steel 304 structure meet requirement of HACCP
7. Multi-rejector for option including air jet, air pusher, flapper, motor driven roller conveyor etc.
| Technical Specification | |||
| Model | ZH-DM | ||
| Type | 3008/3012/3015/3018 | 4008/4012/4015/4018 | 5015/5020/5025/5030 |
| Window Width | 300mm | 400mm | 500mm |
| Window Height | 80/120/150/180mm | 80/120/150/180mm | 200/250mm |
| Sensitivity for Fe | Φ0.7/0.7/0.7/0.8mm | Φ0.7/0.7/0.7/0.8mm | Φ0.8/1/1.2/1.5mm |
| Sensitivity for SS | Φ1.2/1.5/1.5/2.0mm | Φ1.2/1.5/1.5/2.0mm | Φ2.0/2.0/2.5/3.0mm |
| Belt Width | 280mm | 360mm | 460mm |
| Max Weight | 5Kg | 10kg | 50kg |
| Monitor | LCD | ||
| Belt Material | Food grade PVC, Options for PU and chain plate | ||
| Belt Speed | 25m/min | ||
| Alarm | Stop or rejector | ||
| Rejector | Air blow, Pusher, Shifter | ||
| Power Parameter | 220V/110V 50/60Hz | ||
| Protection Level | IP30/IP54/IP66 | ||
| Frame Material | SUS304 | ||
Application
Metal detector is mainly used for checking metal impurities which mix or drop in bakery ,pizza ,hamburger ,
puree ,sauce ,vegetable tobaccos etc and other occasion that need metal detection ,it can apply to high temperature ,
low temperature ,damp,dry,dust ,dew and other poor work environment,

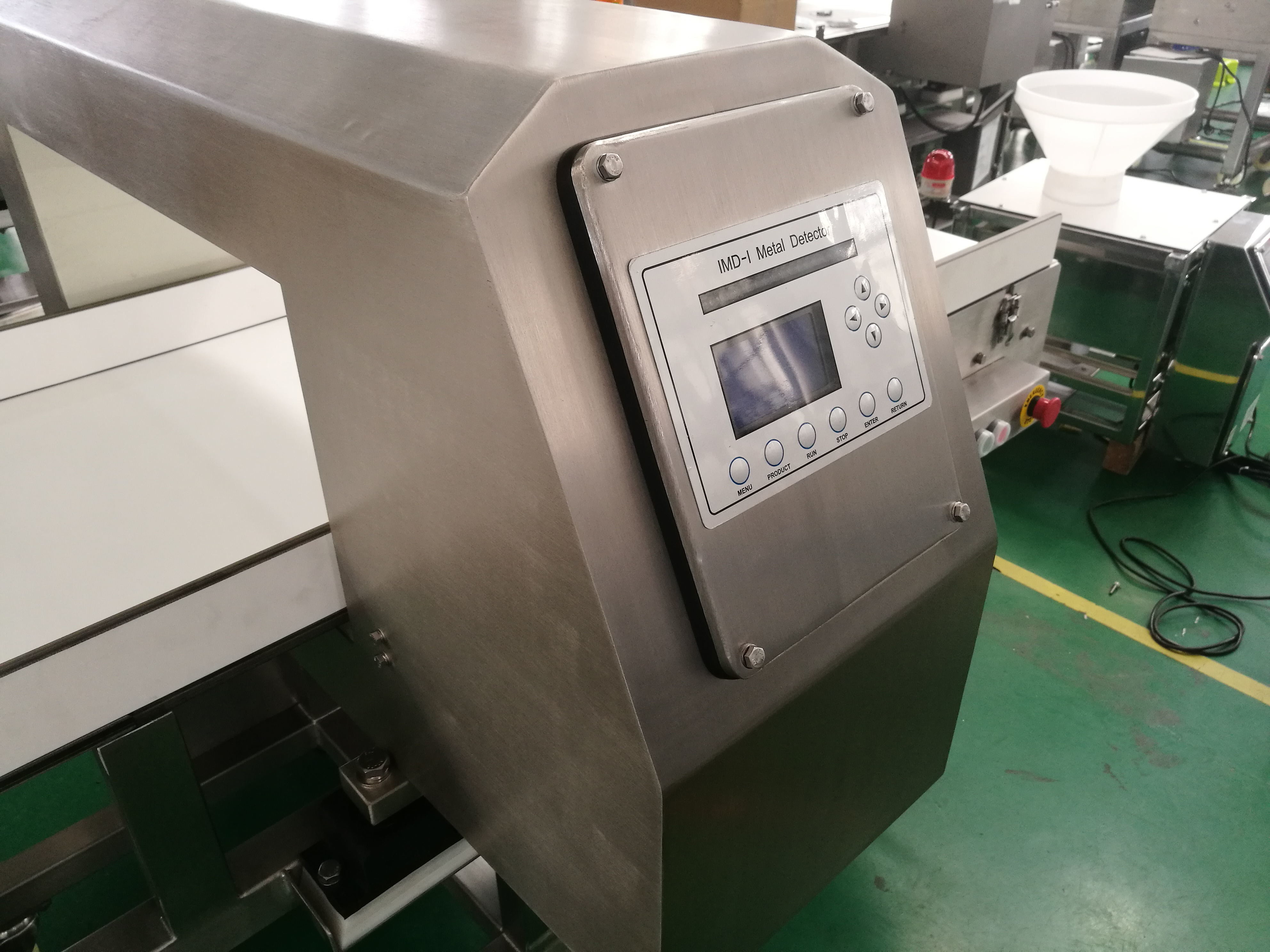

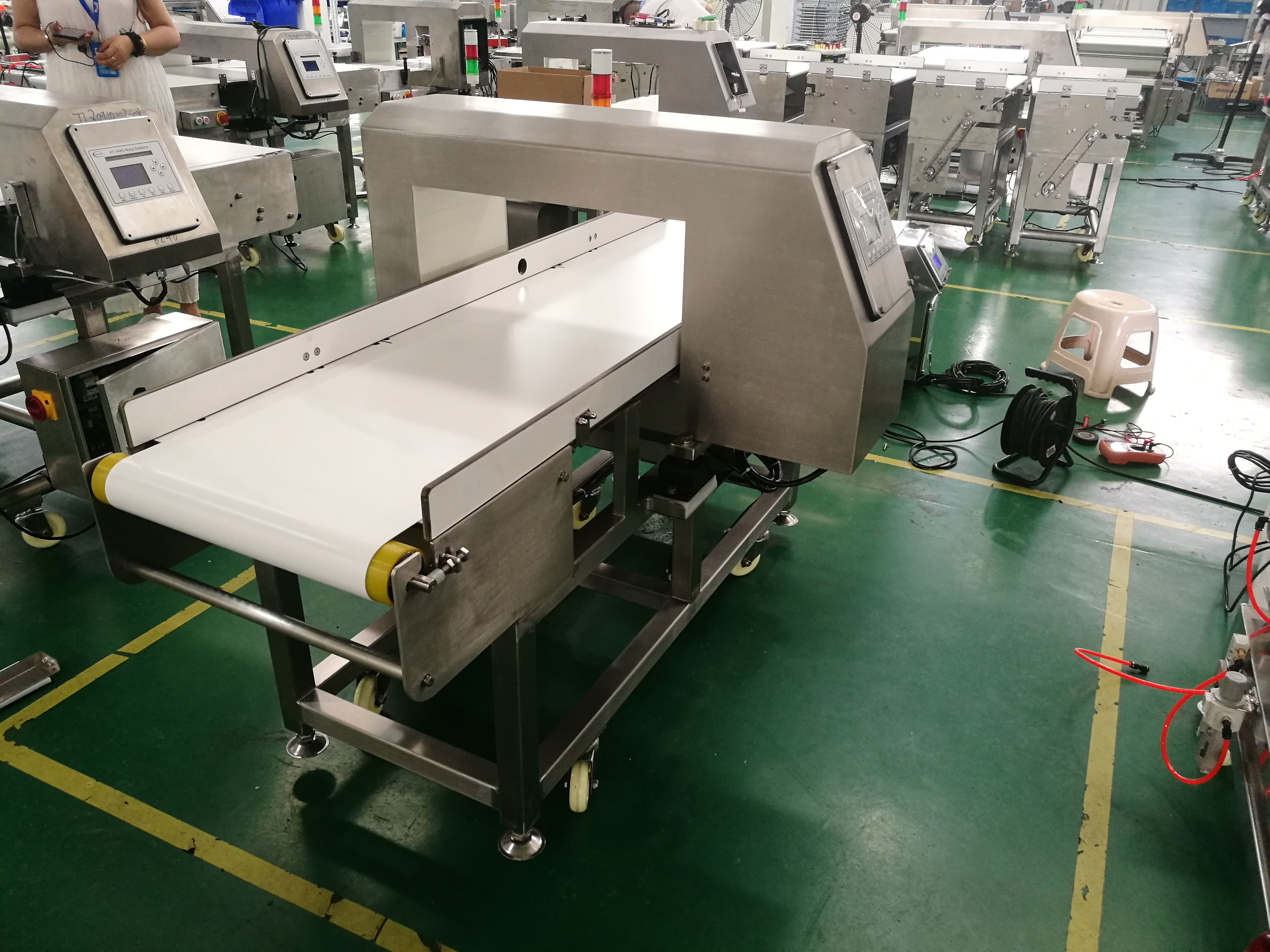

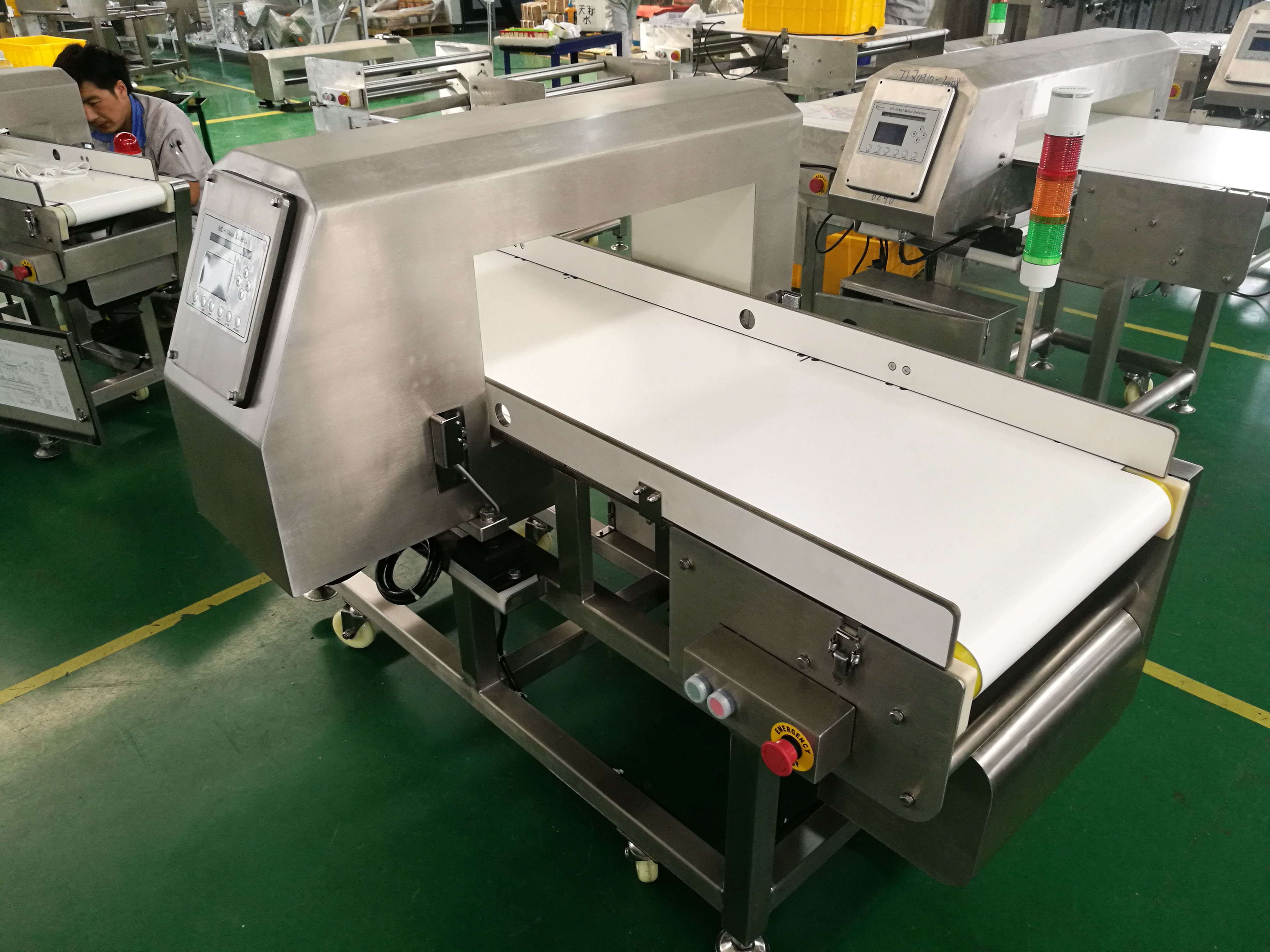

Machine Details
