Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-CL |
| Minimum Order Quantity: | 1 Set |
| Price: | 750-1100USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-25 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 299 Sets per month |
| Name: | Small Incline Conveyor | Conveyor Width: | 295mm |
|---|---|---|---|
| Conveyor Height: | 0.9-1.2m | Conveyor Speed: | 20m/min |
| Power: | 90W | Belt Material: | PP Plate Or PU/PVC |
| Frame Material: | SUS304 | Control: | VFD |
| High Light: | 0.9m food grade conveyor systems,20m/min food grade conveyor systems,0.9m inclined cleated belt conveyor |
||

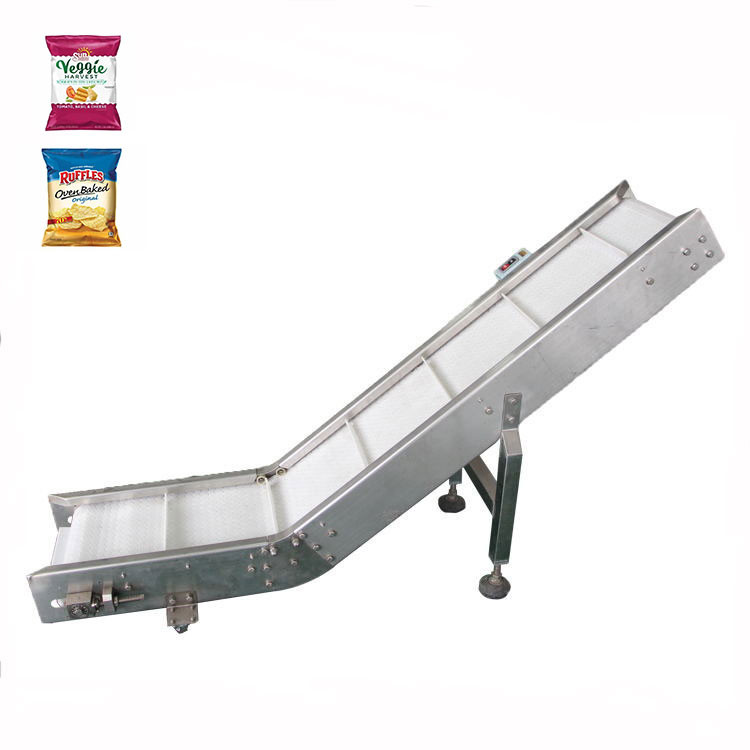

Easy operation inclined cleated belt conveyors system for snack bag
Technical Feature
1. The machine can send the packaged finished pouch to the inspection device or to final packaging platform.
2. Be made of 304stainless steel and rubber (PP/ PVC).
3. Big size acclivitous conveyor is available in this type.
| Technical Specification | |||
| Model | ZH-CL | ||
| Conveyor width | 295mm | ||
| Conveyor height | 0.9-1.2m | ||
| Conveyor speed | 20m/min | ||
| Frame Material | 304SS | ||
| Power | 90W /220V | ||
| Weight | 50kg | ||
| Options | chain plate,belt | ||
| Warranty | 1 year | ||
Advantages:
1. Low cost and big conveying capacity.
2. Easy operate and maintenance.
3. The belt length and width can be special make.

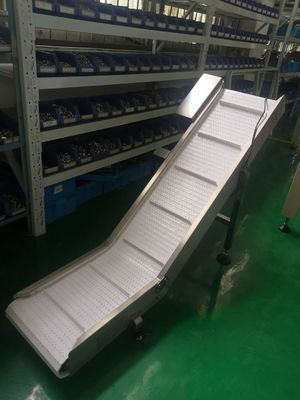

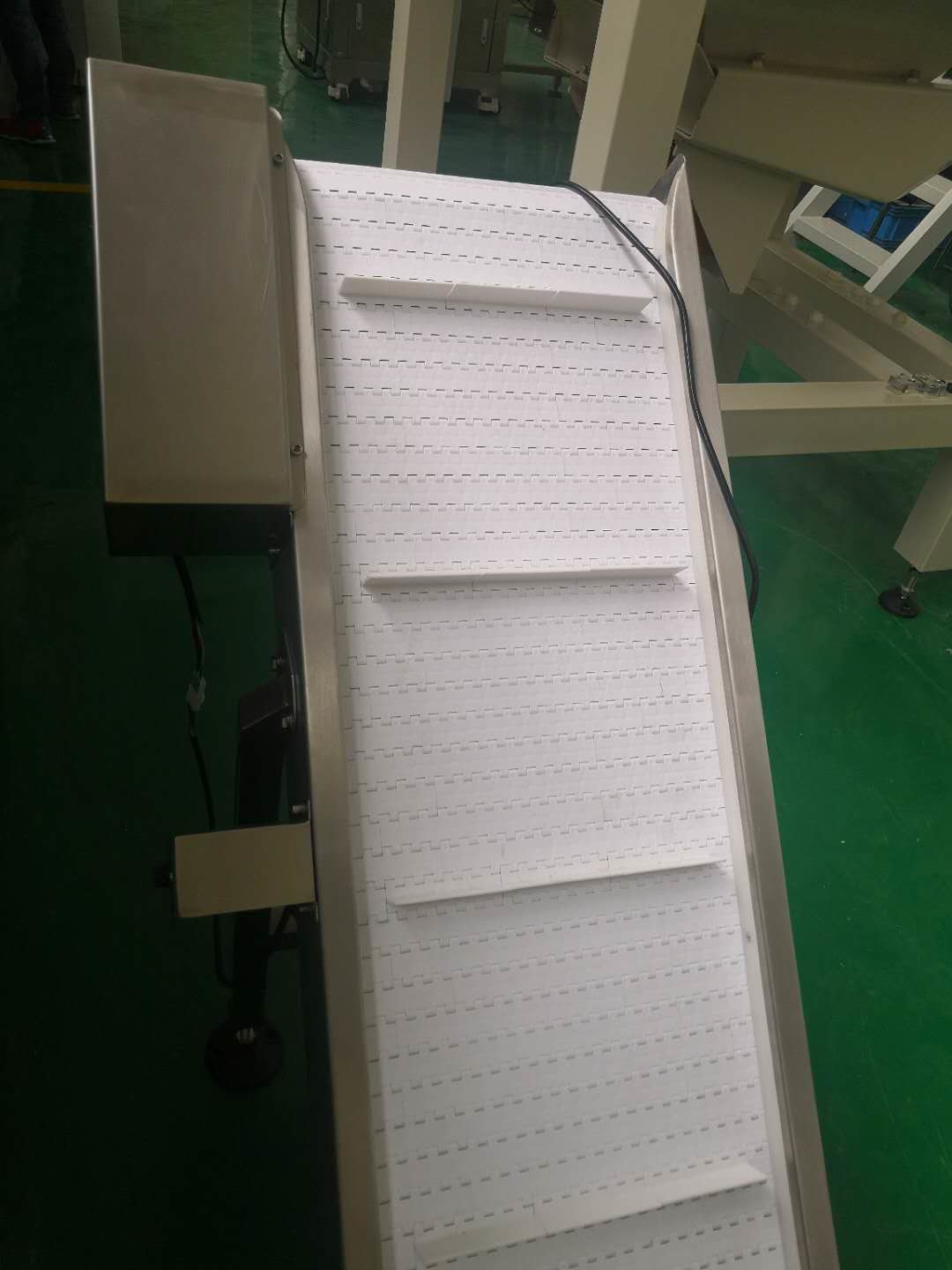

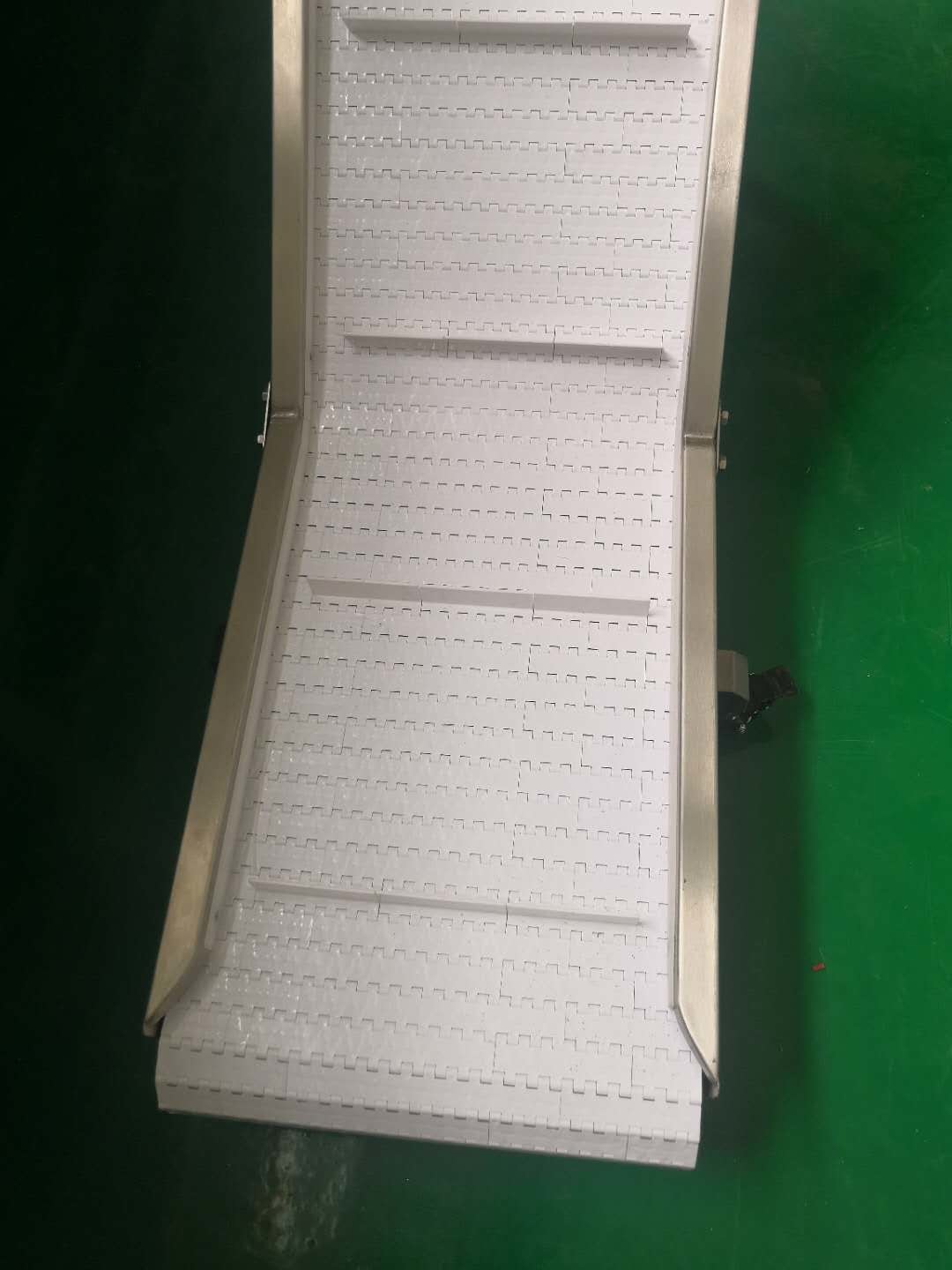

Machine Details:

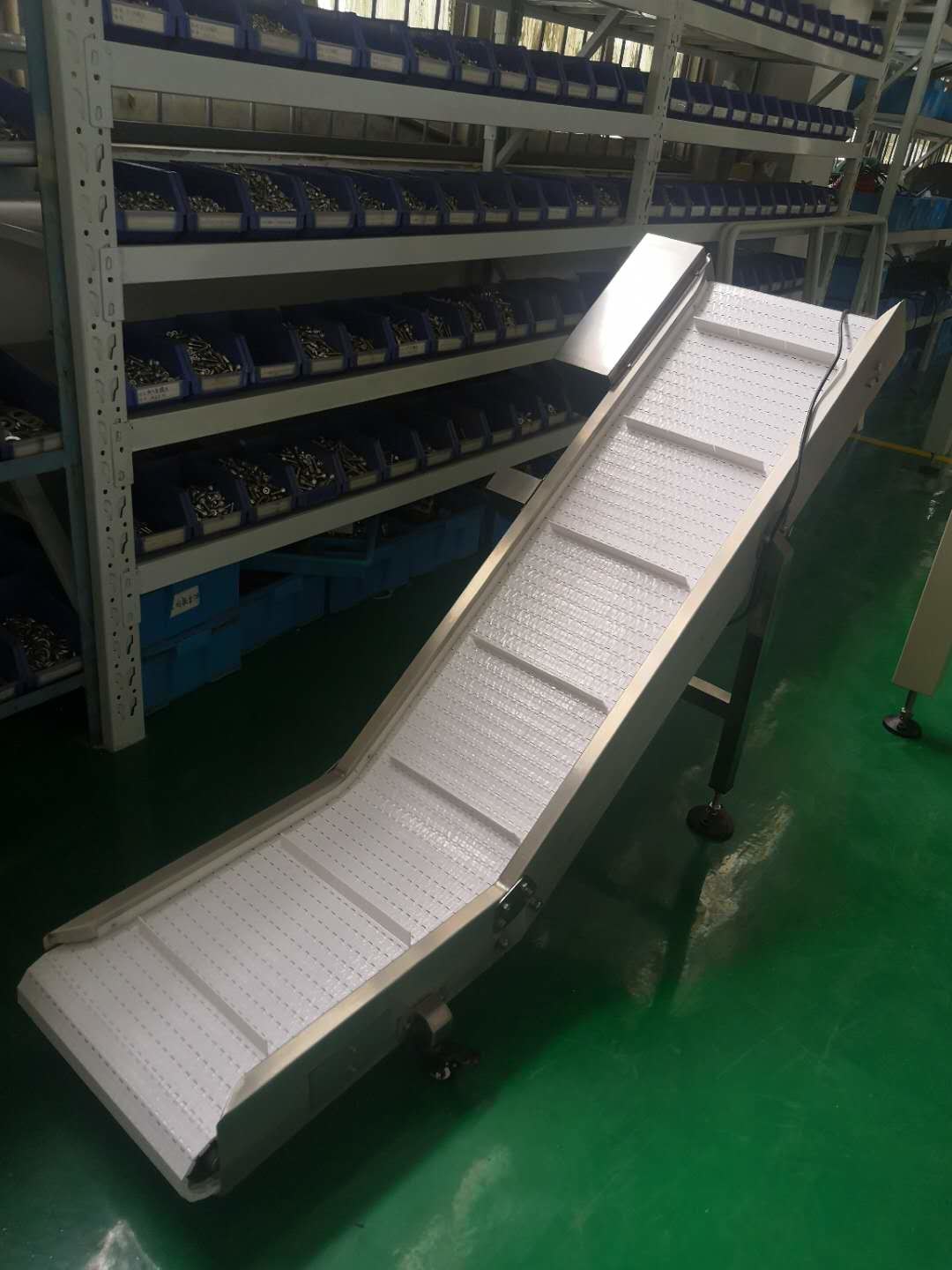

Case Shows
