Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | Hangzhou,Zhejiang,China |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE |
| Model Number: | ZH-DM |
| Minimum Order Quantity: | 1sets |
| Price: | USD4900-5500/SET |
| Packaging Details: | wooden cases |
| Delivery Time: | 25working days |
| Payment Terms: | L/C, D/A, D/P, Western Union, T/T, MoneyGram |
| Supply Ability: | 99sets/month |
| Application: | Metal Contaminants Detection | Teature: | High Accuracy |
|---|---|---|---|
| Feature Teature: | Can Customized Waterproof And Dustproof | Detection Width: | 300mm/400mm/500mm |
| Detection Height: | 80mm/120mm/150mm/180mm/200mm/250mm | Belt Speed: | 25m/min |
| Belt Type: | Food Grade PVC | ||
| High Light: | 304ss Frame Food Grade Metal Detectors,25m/min Food Metal Detectors,PVC Belt Food Grade Metal Detectors |
||

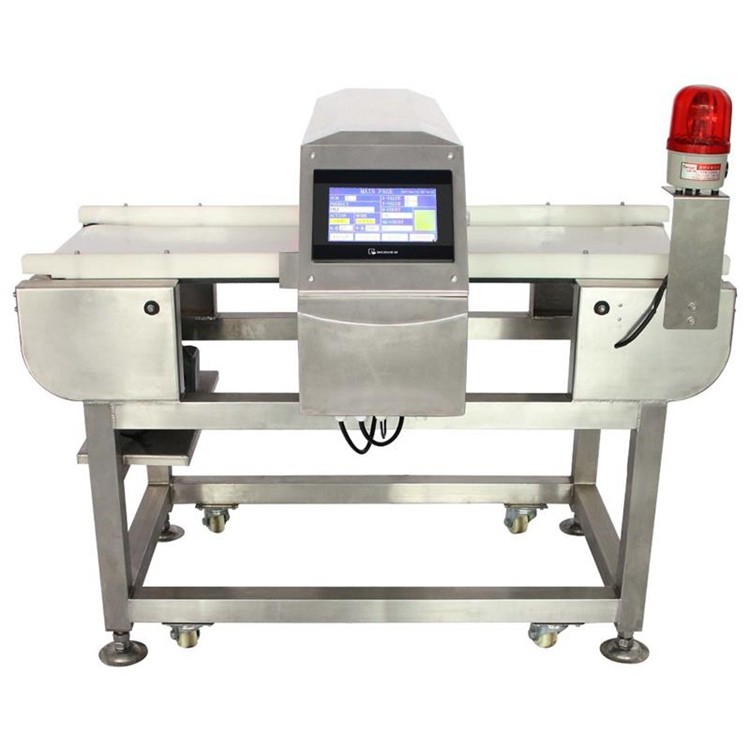

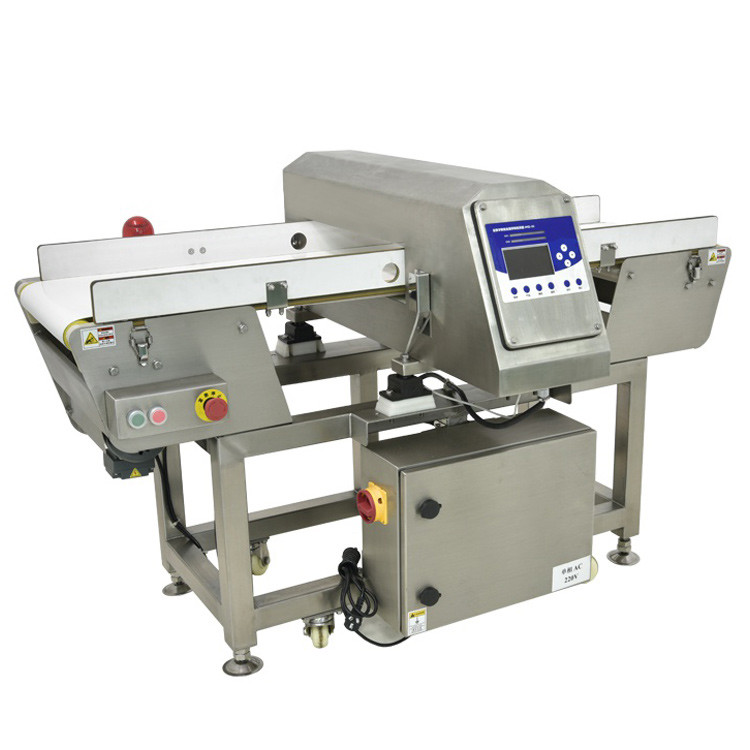

High Accuracy Automatic Food Metal Detection Metal Detector In Packing Line
304ss frame automatic food metal detector with CE certification
Technical Feature
1. Adapt phase discriminating technology that can effectively refrain product effect;
2. Be able to detect various metals like iron, stainless teel,copper and aluminum, etc;
3. LCD display, Chinese & English operating menu;
4. Self-learning function contributes to automaticallychoose suitable working parameters according to different products;
5. Memory function for registering various products
6. Simple conveyor structure makes it convenient to disassembleand assemble;
7. Special design of conveyor belt to avoid deviation;
8. Made of stainless steel, fairly good waterproof ability;
9. Excellent quality with attractive price.
| Technical Specification | |||
| Model | ZH-DM | ||
| Type | 3008/3012/3015/3018 | 4008/4012/4015/4018 | 5015/5020/5025/5030 |
| Window Width | 300m | 400mm | 500mm |
| Window Height | 80/120/150/180mm | 80/120/150/180mm | 200/250mm |
| Sensitivity for Fe | Φ0.7/0.7/0.7/0.8mm | Φ0.7/0.7/0.7/0.8mm | Φ0.8/1/1.2/1.5mm |
| Sensitivity for SS | Φ1.2/1.5/1.5/2.0mm | Φ1.2/1.5/1.5/2.0mm | Φ2.0/2.0/2.5/3.0mm |
| Belt Width | 280mm | 360mm | 460mm |
| Max Weight | 5Kg | 10kg | 50kg |
| Monitor | LCD | ||
| Belt Material | Food grade PVC, Options for PU and chain plate | ||
| Belt Speed | 25m/min | ||
| Alarm | Stop or rejector | ||

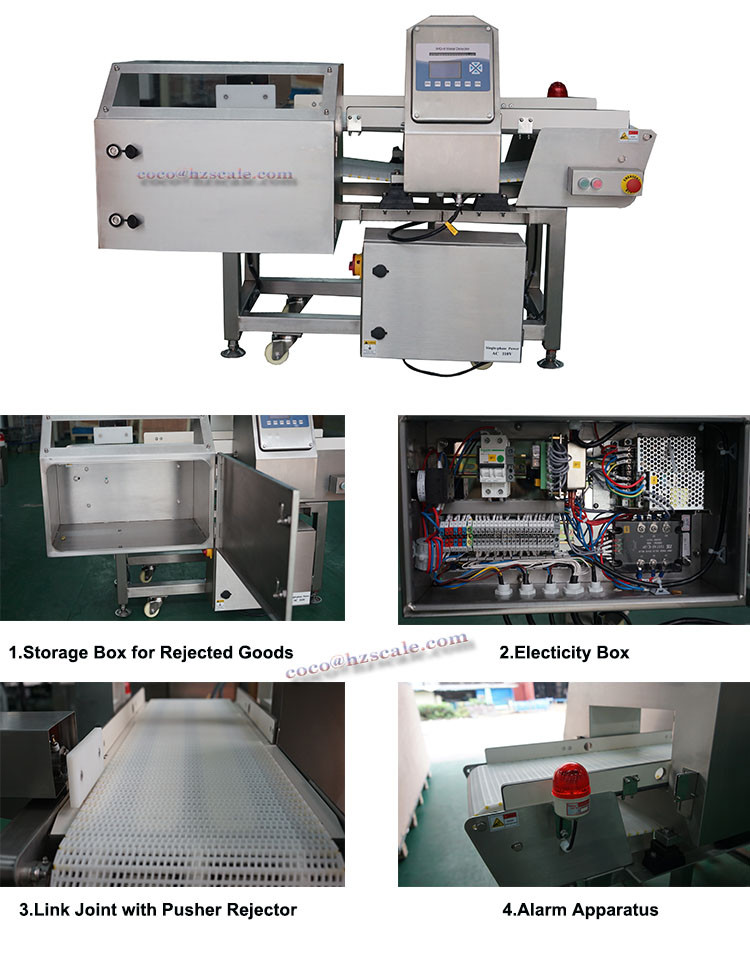

| Rejector | Air blow, Pusher, Shifter | ||
| Power Parameter | 220V/110V 50/60Hz | ||
| Protection Level | IP30/IP54/IP66 | ||
| Frame Material | SUS304 | ||
Application
The metal detector is widely used in Aquatic products,meat and poultry products,
preserved food,flour products,dried fruit,vegetables ,chemical materials and so
on to ensure contaminated product is detected.

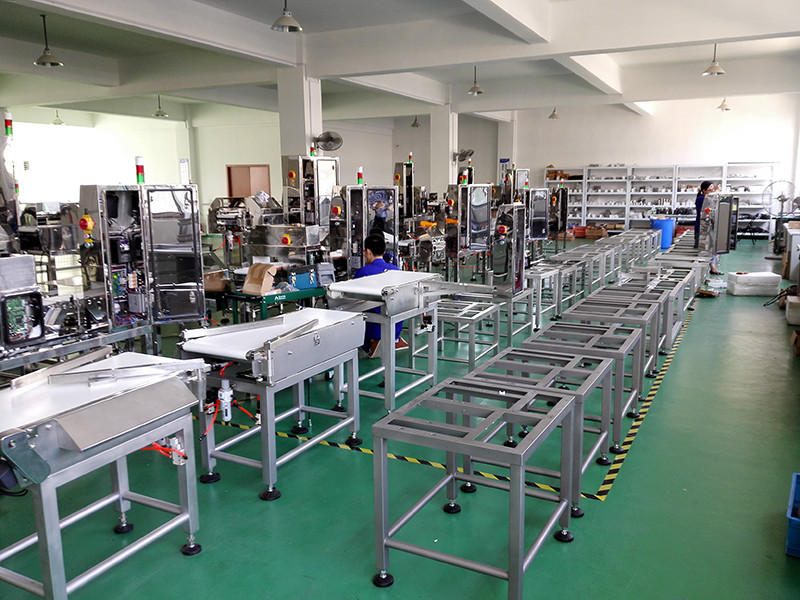

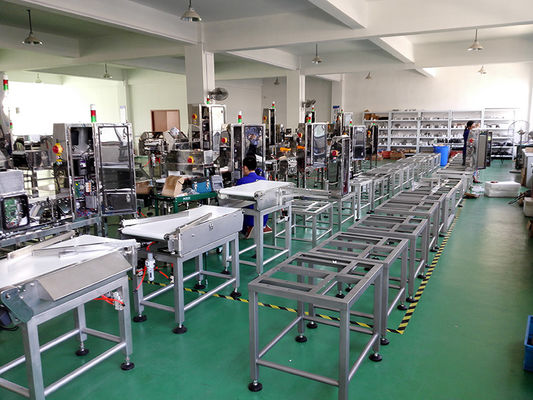

Our Cases
Our Partners
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3. Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4. The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
