Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-V320 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD+7000USD+per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 99+ Set+ per+ month |
| Material: | 304SS | Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
|---|---|---|---|
| Function: | Filling,date Printing, | Name: | Vertical Packing Machine |
| Max Film Width: | 320mm | Power Parameter: | 2.2KW 220V 50/60Hz |
| Film Thickness: | 0.04-0.09mm | Packing Speed: | 25-70bags/min |
| High Light: | 320mm cashew nut packing machine,2.2KW cashew nut packing machine,320mm peanut packing machine |
||

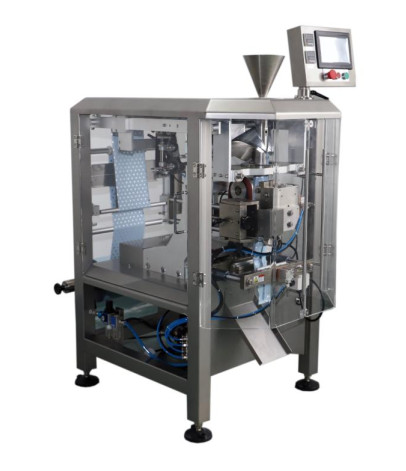

Siemens PLC control Roast Cashew Nut Weighing Packing Machine Peanut Filling Machine
1 . Technical Feature
1. Material conveying, weighing, filling, bag-making, date-printing, finished product outputting are all completed
automatically.
2. High weighing precision and efficiency.
3. Packing efficiency will be high with vertical packing machine and easy to operate.
2 . Technical Specification
| Model | ZH-V320 |
| Packing speed | 25-70Bags/Min |
| Bag size(mm) |
W:60-150mm L:50-200mm |
| Bag making mode | Pillow bag, standing bag (gusseted), Punching bag Connecting bag |
| Max film width (mm) | 320 |
| Thickness of film (mm) | 0.04-0.09mm |
| Air consumption | 0.3m3/min 0.8MPa |
| Packing Material |
laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE ,NY/PE, PET/ PET. |
| Power Parameter | 220V50/60Hz 2.2KW |
| Dimension(mm) | 1115(L)×800(W)×1370(H) |
| Gross Weight(kg) | 300 |
3 . Application of Machine
It is suitable for weighing and packing grains, pulses, seeds, salt,coffee beans, maize, nuts, candies, dried fruits, pasta, vegetables, snacks, pet food, etc.
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
Our Factory
