Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD+23500USD+per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-40 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 99+ Set+ per+ month |
| Material: | 304SS , 316SS | Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
|---|---|---|---|
| Packing Material: | Laminated Film ,PE Film | Function: | Feeding,Filling ,Weighing,Packing,Sealing |
| Feature: | Mitsubishi Or Siemens Control System | Speed: | 25-50bag/min |
| Accuacry: | ±0.1-1.5g | System Output: | 8.4Ton/Day |
| Warranty: | 1 Years | Technical: | High Weighing Precision And Efficiency |
| Highlight: | ZH-BL10 Nuts Packing Machine,1.5g Nuts Packing Machine,ZH-BL10 pasta packing machine |
||
New type paste noodle packaging filling machine chocolate biscuit candy packaging machine for sale
| Technical Specification | |
| Model | ZH-BL10 / ZH-BL14 |
| Packing Speed | 25-60 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag,linked bag |
| Packing Material | laminated film ,PE film |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
Technical Feature :
1. 304/316 stainless steel frame
4. Intelligent: Packing speed and bag size can be set through the screen without part changes;
5. Packaging diversification, such as pillow bag, gusseted bag, hole punched bag etc.
6. Full automation from bag forming, filling, sealing, cutting and date printing.
7. Profession: Independent temperature controller with heat balance enables different packing materials;
8. Characteristic: Automatic stop function, with safe operation and saving the film;

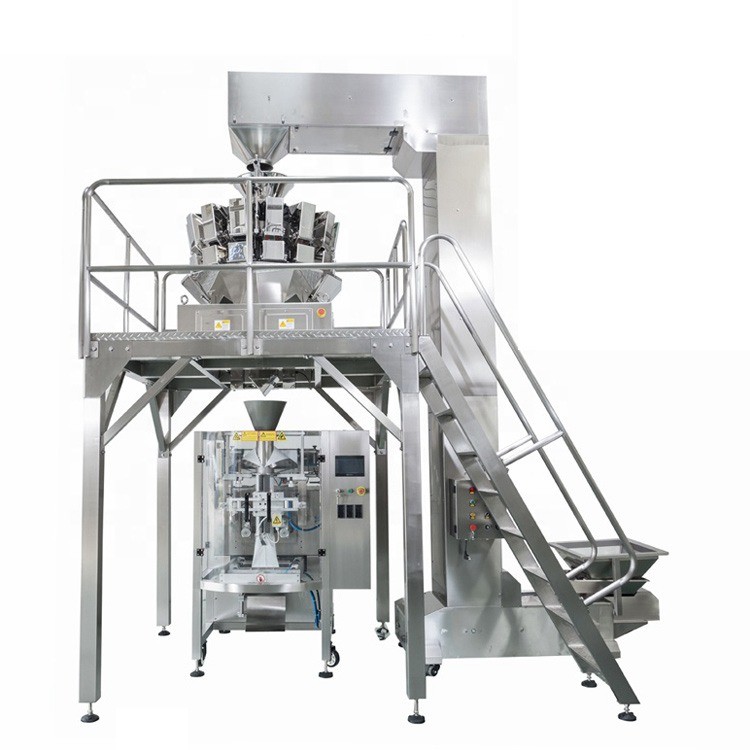

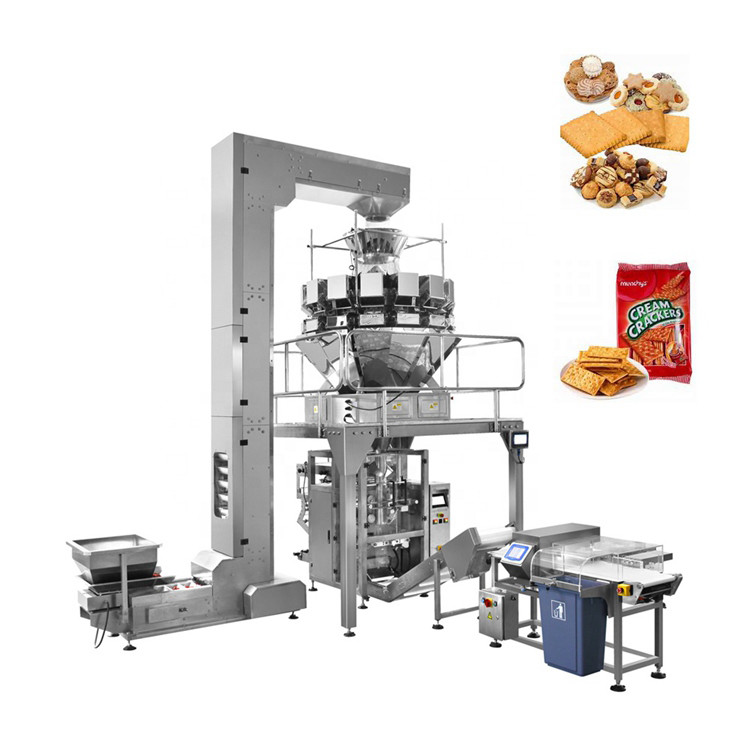

System Compostion :
1. Infeed bucket conveyor:
Feed nuts to multihead weigher which controls the start and stop of the hoister.
2. 10 heads multi weigher:
Used for nuts weighing.
3. Working platform:
Support the 10 heads multi weigher.
4. Vertical packing machine:
Pack nuts with high speed, and data printed, sealing-off and bag cut are completed automatically.
5. Take off conveyor:
Convey nuts finished bag to next step.
Application of Machine
It is suitable for Fill free-flowing grains, pulses, seeds, salt,coffee beans, maize, nuts, candies, dried fruits, pasta, vegetables, snacks, pet food, low weighing engineering products and many more. etc.
Food Materials and Bag Type :

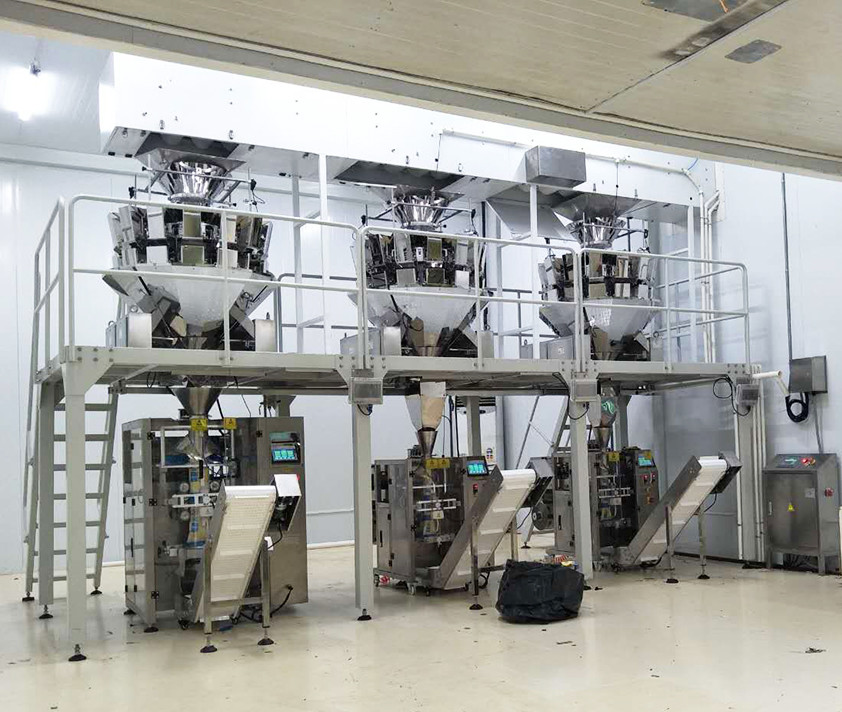

Some Project :
Our Factory:
